Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: ContainerBundleReportCreateRequest
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
Abstract
Documentation:
Request to create a container report.

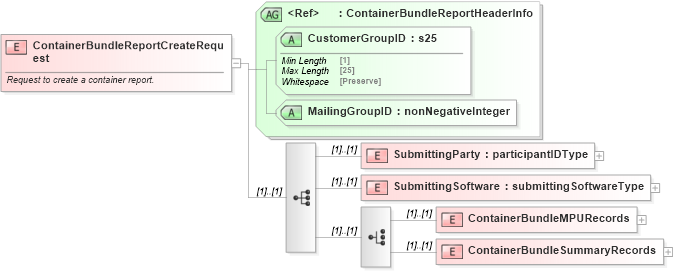

Collapse XSD Schema Diagram:
Drilldown into ContainerBundleSummaryRecords in schema mailxml_120308_xsd Drilldown into ContainerBundleMPURecords in schema mailxml_120308_xsd Drilldown into SubmittingSoftware in schema mailxml_120308_xsd Drilldown into SubmittingParty in schema mailxml_120308_xsd Drilldown into MailingGroupID in schema mailxml_120308_xsd Drilldown into CustomerGroupID in schema mailxml_120308_xsd Drilldown into ContainerBundleReportHeaderInfo in schema mailxml_120308_xsdXSD Diagram of ContainerBundleReportCreateRequest in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="ContainerBundleReportCreateRequest">
    <xs:annotation>
        <xs:documentation>Request to create a container report.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element name="SubmittingParty" type="mailxml:participantIDType" />
            <xs:element name="SubmittingSoftware" type="mailxml:submittingSoftwareType" />
            <xs:choice>
                <xs:element name="ContainerBundleMPURecords">
                    <xs:complexType>
                        <xs:sequence>
                            <xs:element name="SackTrayContainerMPURecord" type="mailxml:sackTrayContainerMPURecordType" minOccurs="0" maxOccurs="unbounded" />
                            <xs:element name="PalletContainerMPURecord" type="mailxml:palletContainerMPURecordType" minOccurs="0" maxOccurs="unbounded" />
                            <xs:element name="BundleMPURecord" type="mailxml:bundleMPURecordType" minOccurs="0" maxOccurs="unbounded" />
                        </xs:sequence>
                    </xs:complexType>
                </xs:element>
                <xs:element name="ContainerBundleSummaryRecords">
                    <xs:complexType>
                        <xs:sequence>
                            <xs:element name="SackTrayContainerRecord" type="mailxml:sackTrayContainerRecordType" minOccurs="0" maxOccurs="unbounded" />
                            <xs:element name="PalletContainerRecord" type="mailxml:palletContainerRecordType" minOccurs="0" maxOccurs="unbounded" />
                            <xs:element name="BundleRecord" type="mailxml:bundleRecordType" minOccurs="0" maxOccurs="unbounded" />
                        </xs:sequence>
                    </xs:complexType>
                </xs:element>
            </xs:choice>
        </xs:sequence>
        <xs:attributeGroup ref="mailxml:ContainerBundleReportHeaderInfo" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SubmittingParty mailxml:SubmittingParty (1) (1)
SubmittingSoftware mailxml:SubmittingSoftware (1) (1)
ContainerBundleMPURecords mailxml:ContainerBundleMPURecords (1) (1)
ContainerBundleSummaryRecords mailxml:ContainerBundleSummaryRecords (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
CustomerGroupID mailxml:CustomerGroupID Required
MailingGroupID mailxml:MailingGroupID Required
