Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: ContainerGroup
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Type: mailxml:groupContainerIDType
Containing Schema: mailxml_120308.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract

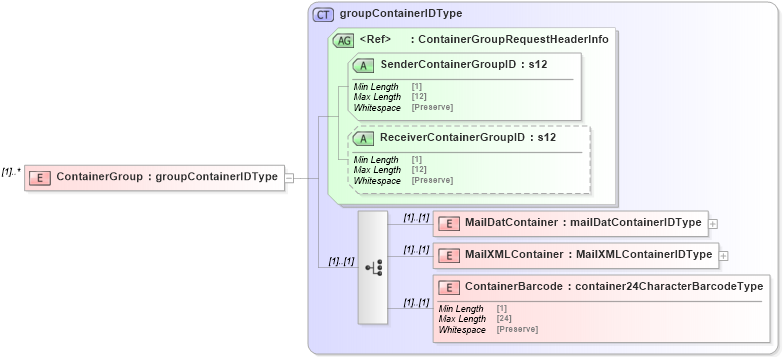

Collapse XSD Schema Diagram:
Drilldown into ContainerBarcode in schema mailxml_120308_xsd Drilldown into MailXMLContainer in schema mailxml_120308_xsd Drilldown into MailDatContainer in schema mailxml_120308_xsd Drilldown into ReceiverContainerGroupID in schema mailxml_120308_xsd Drilldown into SenderContainerGroupID in schema mailxml_120308_xsd Drilldown into ContainerGroupRequestHeaderInfo in schema mailxml_120308_xsd Drilldown into groupContainerIDType in schema mailxml_120308_xsdXSD Diagram of ContainerGroup in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="ContainerGroup" type="mailxml:groupContainerIDType" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MailDatContainer mailxml:MailDatContainer (1) (1)
MailXMLContainer mailxml:MailXMLContainer (1) (1)
ContainerBarcode mailxml:ContainerBarcode (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
SenderContainerGroupID mailxml:SenderContainerGroupID Required
ReceiverContainerGroupID mailxml:ReceiverContainerGroupID Optional
Collapse Derivation Tree:
