Documentation for Mail.XML - Mailing supply chain
Definition Type: AttributeGroup
Name: CRQueryRequestHeaderInfo
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
Documentation:
Group of attributes identifying a mail piece and link to Maildat

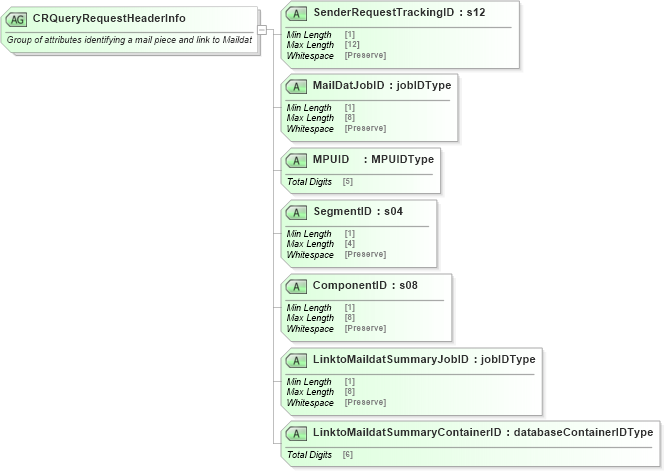

Collapse XSD Schema Diagram:
Drilldown into LinktoMaildatSummaryContainerID in schema mailxml_120308_xsd Drilldown into LinktoMaildatSummaryJobID in schema mailxml_120308_xsd Drilldown into ComponentID in schema mailxml_120308_xsd Drilldown into SegmentID in schema mailxml_120308_xsd Drilldown into MPUID in schema mailxml_120308_xsd Drilldown into MailDatJobID in schema mailxml_120308_xsd Drilldown into SenderRequestTrackingID in schema mailxml_120308_xsdXSD Diagram of CRQueryRequestHeaderInfo in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:attributeGroup name="CRQueryRequestHeaderInfo">
    <xs:annotation>
        <xs:documentation>Group of attributes identifying a mail piece and link to Maildat</xs:documentation>
    </xs:annotation>
    <xs:attribute name="SenderRequestTrackingID" type="mailxml_base:s12" use="required" />
    <xs:attribute name="MailDatJobID" type="mailxml_base:jobIDType" use="required" />
    <xs:attribute name="MPUID" type="mailxml_base:MPUIDType" use="required" />
    <xs:attribute name="SegmentID" type="mailxml_base:s04" use="required" />
    <xs:attribute name="ComponentID" type="mailxml_base:s08" use="required" />
    <xs:attribute name="LinktoMaildatSummaryJobID" type="mailxml_base:jobIDType" use="required" />
    <xs:attribute name="LinktoMaildatSummaryContainerID" type="mailxml_base:databaseContainerIDType" use="required" />
</xs:attributeGroup>
Collapse Child Attributes:
Name Type Default Value Use
SenderRequestTrackingID mailxml:SenderRequestTrackingID Required
MailDatJobID mailxml:MailDatJobID Required
MPUID mailxml:MPUID Required
SegmentID mailxml:SegmentID Required
ComponentID mailxml:ComponentID Required
LinktoMaildatSummaryJobID mailxml:LinktoMaildatSummaryJobID Required
LinktoMaildatSummaryContainerID mailxml:LinktoMaildatSummaryContainerID Required
