Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: CSADispatch
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Type: mailxml:csaDispatchType
Containing Schema: mailxml_120308.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract

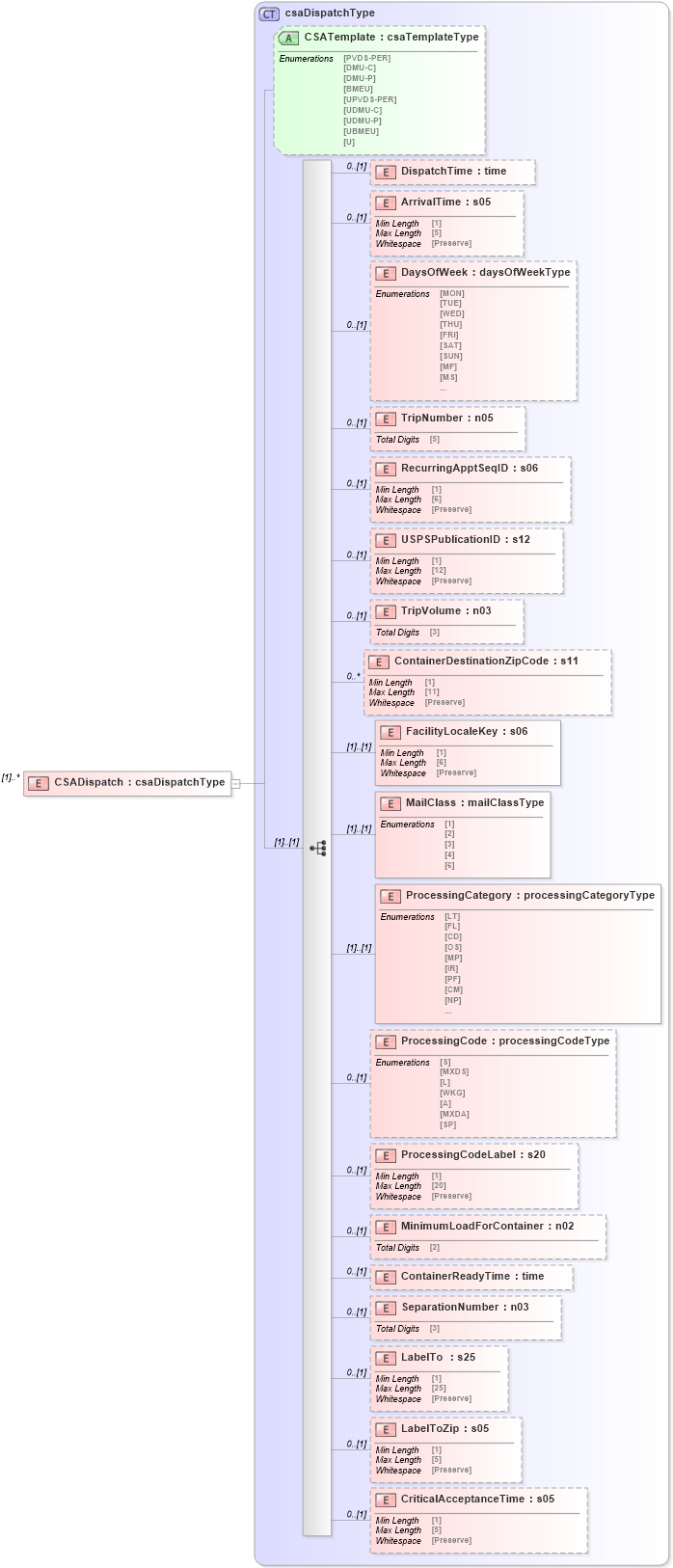

Collapse XSD Schema Diagram:
Drilldown into CriticalAcceptanceTime in schema mailxml_120308_xsd Drilldown into LabelToZip in schema mailxml_120308_xsd Drilldown into LabelTo in schema mailxml_120308_xsd Drilldown into SeparationNumber in schema mailxml_120308_xsd Drilldown into ContainerReadyTime in schema mailxml_120308_xsd Drilldown into MinimumLoadForContainer in schema mailxml_120308_xsd Drilldown into ProcessingCodeLabel in schema mailxml_120308_xsd Drilldown into ProcessingCode in schema mailxml_120308_xsd Drilldown into ProcessingCategory in schema mailxml_120308_xsd Drilldown into MailClass in schema mailxml_120308_xsd Drilldown into FacilityLocaleKey in schema mailxml_120308_xsd Drilldown into ContainerDestinationZipCode in schema mailxml_120308_xsd Drilldown into TripVolume in schema mailxml_120308_xsd Drilldown into USPSPublicationID in schema mailxml_120308_xsd Drilldown into RecurringApptSeqID in schema mailxml_120308_xsd Drilldown into TripNumber in schema mailxml_120308_xsd Drilldown into DaysOfWeek in schema mailxml_120308_xsd Drilldown into ArrivalTime in schema mailxml_120308_xsd Drilldown into DispatchTime in schema mailxml_120308_xsd Drilldown into CSATemplate in schema mailxml_120308_xsd Drilldown into csaDispatchType in schema mailxml_120308_xsdXSD Diagram of CSADispatch in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="CSADispatch" type="mailxml:csaDispatchType" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DispatchTime mailxml:DispatchTime 0 (1)
ArrivalTime mailxml:ArrivalTime 0 (1)
DaysOfWeek mailxml:DaysOfWeek 0 (1)
TripNumber mailxml:TripNumber 0 (1)
RecurringApptSeqID mailxml:RecurringApptSeqID 0 (1)
USPSPublicationID mailxml:USPSPublicationID 0 (1)
TripVolume mailxml:TripVolume 0 (1)
ContainerDestinationZipCode mailxml:ContainerDestinationZipCode 0 unbounded
FacilityLocaleKey mailxml:FacilityLocaleKey (1) (1)
MailClass mailxml:MailClass (1) (1)
ProcessingCategory mailxml:ProcessingCategory (1) (1)
ProcessingCode mailxml:ProcessingCode 0 (1)
ProcessingCodeLabel mailxml:ProcessingCodeLabel 0 (1)
MinimumLoadForContainer mailxml:MinimumLoadForContainer 0 (1)
ContainerReadyTime mailxml:ContainerReadyTime 0 (1)
SeparationNumber mailxml:SeparationNumber 0 (1)
LabelTo mailxml:LabelTo 0 (1)
LabelToZip mailxml:LabelToZip 0 (1)
CriticalAcceptanceTime mailxml:CriticalAcceptanceTime 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
CSATemplate mailxml:CSATemplate (Optional)
Collapse Derivation Tree:
