Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: CustomerRelationIdentifyUpdateReject
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Collapse XSD Schema Diagram:

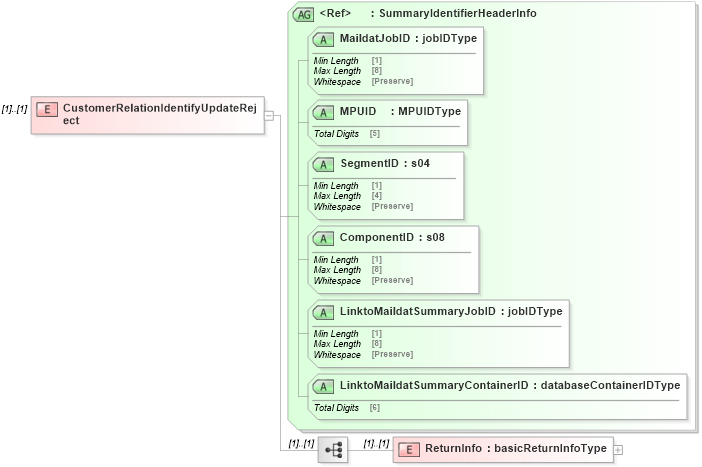

Drilldown into ReturnInfo in schema mailxml_120308_xsd Drilldown into LinktoMaildatSummaryContainerID in schema mailxml_120308_xsd Drilldown into LinktoMaildatSummaryJobID in schema mailxml_120308_xsd Drilldown into ComponentID in schema mailxml_120308_xsd Drilldown into SegmentID in schema mailxml_120308_xsd Drilldown into MPUID in schema mailxml_120308_xsd Drilldown into MaildatJobID in schema mailxml_120308_xsd Drilldown into SummaryIdentifierHeaderInfo in schema mailxml_120308_xsdXSD Diagram of CustomerRelationIdentifyUpdateReject in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="CustomerRelationIdentifyUpdateReject">
    <xs:complexType>
        <xs:sequence>
            <xs:element name="ReturnInfo" type="mailxml:basicReturnInfoType" />
        </xs:sequence>
        <xs:attributeGroup ref="mailxml:SummaryIdentifierHeaderInfo" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ReturnInfo mailxml:ReturnInfo (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
MaildatJobID mailxml:MaildatJobID Required
MPUID mailxml:MPUID Required
SegmentID mailxml:SegmentID Required
ComponentID mailxml:ComponentID Required
LinktoMaildatSummaryJobID mailxml:LinktoMaildatSummaryJobID Required
LinktoMaildatSummaryContainerID mailxml:LinktoMaildatSummaryContainerID Required
