Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: DeliveryApptQueryResponse
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
Abstract
Documentation:
Response to the Query request for for availablity of a particular appointment.

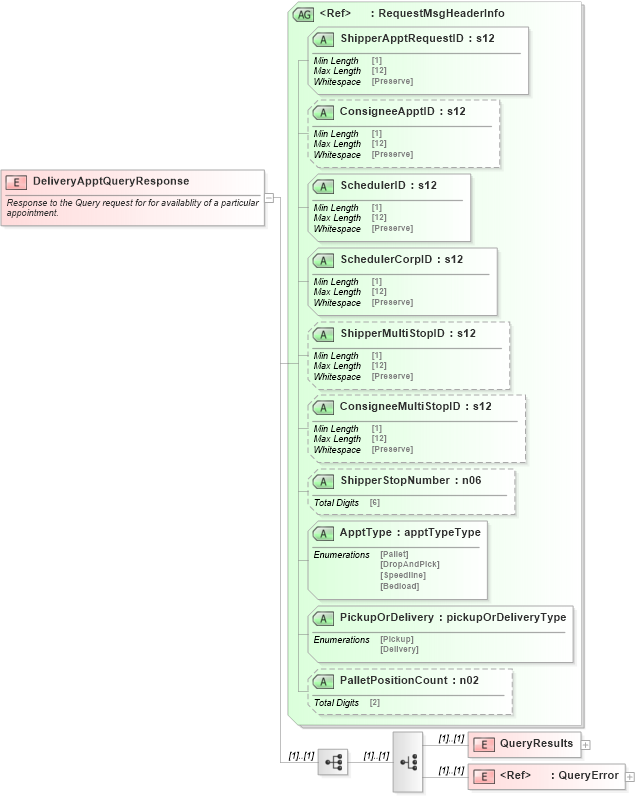

Collapse XSD Schema Diagram:
Drilldown into QueryError in schema mailxml_120308_xsd Drilldown into QueryResults in schema mailxml_120308_xsd Drilldown into PalletPositionCount in schema mailxml_120308_xsd Drilldown into PickupOrDelivery in schema mailxml_120308_xsd Drilldown into ApptType in schema mailxml_120308_xsd Drilldown into ShipperStopNumber in schema mailxml_120308_xsd Drilldown into ConsigneeMultiStopID in schema mailxml_120308_xsd Drilldown into ShipperMultiStopID in schema mailxml_120308_xsd Drilldown into SchedulerCorpID in schema mailxml_120308_xsd Drilldown into SchedulerID in schema mailxml_120308_xsd Drilldown into ConsigneeApptID in schema mailxml_120308_xsd Drilldown into ShipperApptRequestID in schema mailxml_120308_xsd Drilldown into RequestMsgHeaderInfo in schema mailxml_120308_xsdXSD Diagram of DeliveryApptQueryResponse in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="DeliveryApptQueryResponse">
    <xs:annotation>
        <xs:documentation>Response to the Query request for for availablity of a particular appointment.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:choice>
                <xs:element name="QueryResults">
                    <xs:complexType>
                        <xs:sequence>
                            <xs:choice>
                                <xs:element name="RecurringAppt" type="mailxml:recurringApptType" />
                                <xs:element name="OneTimeAppt" type="mailxml:oneTimeApptType" />
                                <xs:element name="SlotAvailibilty" type="mailxml:slotAvailibilityType" />
                            </xs:choice>
                            <xs:element name="DetailInfo" type="mailxml:detailInfoType" minOccurs="0" maxOccurs="unbounded" />
                            <xs:element name="TrailerInfo" type="mailxml:trailerInfoType" minOccurs="0" />
                            <xs:element name="ConsigneeFacility" type="mailxml:consigneeFacilityType" />
                            <xs:element name="Comment" type="mailxml_base:s256" minOccurs="0" />
                            <xs:element name="AvailableSlots" type="mailxml:availableSlotType" minOccurs="0" />
                            <xs:element name="ReturnInfo" type="mailxml:returnInfoType" minOccurs="0" />
                        </xs:sequence>
                    </xs:complexType>
                </xs:element>
                <xs:element ref="mailxml:QueryError" />
            </xs:choice>
        </xs:sequence>
        <xs:attributeGroup ref="mailxml:RequestMsgHeaderInfo" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
QueryResults mailxml:QueryResults (1) (1)
QueryError mailxml:QueryError (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
ShipperApptRequestID mailxml:ShipperApptRequestID Required
ConsigneeApptID mailxml:ConsigneeApptID (Optional)
SchedulerID mailxml:SchedulerID Required
SchedulerCorpID mailxml:SchedulerCorpID Required
ShipperMultiStopID mailxml:ShipperMultiStopID (Optional)
ConsigneeMultiStopID mailxml:ConsigneeMultiStopID (Optional)
ShipperStopNumber mailxml:ShipperStopNumber (Optional)
ApptType mailxml:ApptType Required
PickupOrDelivery mailxml:PickupOrDelivery Required
PalletPositionCount mailxml:PalletPositionCount (Optional)
