Definition Type: ComplexType
Name: deliveryApptShellAcceptType
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
Abstract

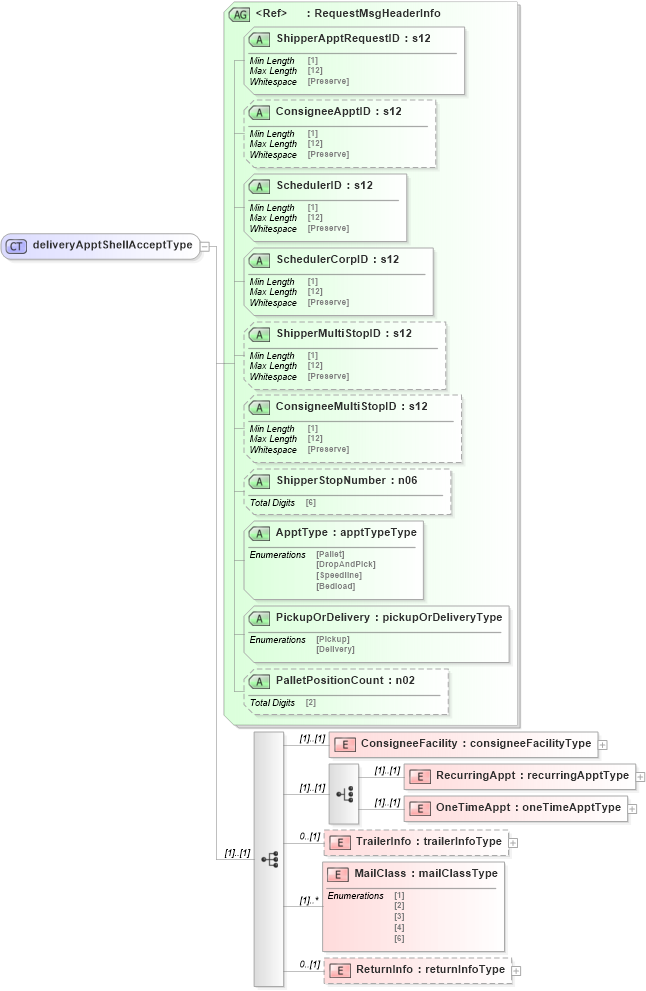

Collapse XSD Schema Diagram:
Drilldown into ReturnInfo in schema mailxml_120308_xsd Drilldown into MailClass in schema mailxml_120308_xsd Drilldown into TrailerInfo in schema mailxml_120308_xsd Drilldown into OneTimeAppt in schema mailxml_120308_xsd Drilldown into RecurringAppt in schema mailxml_120308_xsd Drilldown into ConsigneeFacility in schema mailxml_120308_xsd Drilldown into PalletPositionCount in schema mailxml_120308_xsd Drilldown into PickupOrDelivery in schema mailxml_120308_xsd Drilldown into ApptType in schema mailxml_120308_xsd Drilldown into ShipperStopNumber in schema mailxml_120308_xsd Drilldown into ConsigneeMultiStopID in schema mailxml_120308_xsd Drilldown into ShipperMultiStopID in schema mailxml_120308_xsd Drilldown into SchedulerCorpID in schema mailxml_120308_xsd Drilldown into SchedulerID in schema mailxml_120308_xsd Drilldown into ConsigneeApptID in schema mailxml_120308_xsd Drilldown into ShipperApptRequestID in schema mailxml_120308_xsd Drilldown into RequestMsgHeaderInfo in schema mailxml_120308_xsdXSD Diagram of deliveryApptShellAcceptType in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:complexType name="deliveryApptShellAcceptType">
    <xs:sequence>
        <xs:element name="ConsigneeFacility" type="mailxml:consigneeFacilityType" />
        <xs:choice>
            <xs:element name="RecurringAppt" type="mailxml:recurringApptType" />
            <xs:element name="OneTimeAppt" type="mailxml:oneTimeApptType" />
        </xs:choice>
        <xs:element name="TrailerInfo" type="mailxml:trailerInfoType" minOccurs="0" />
        <xs:element name="MailClass" type="mailxml_base:mailClassType" maxOccurs="unbounded" />
        <xs:element name="ReturnInfo" type="mailxml:returnInfoType" minOccurs="0" />
    </xs:sequence>
    <xs:attributeGroup ref="mailxml:RequestMsgHeaderInfo" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ConsigneeFacility mailxml:ConsigneeFacility (1) (1)
RecurringAppt mailxml:RecurringAppt (1) (1)
OneTimeAppt mailxml:OneTimeAppt (1) (1)
TrailerInfo mailxml:TrailerInfo 0 (1)
MailClass mailxml:MailClass (1) unbounded
ReturnInfo mailxml:ReturnInfo 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
ShipperApptRequestID mailxml:ShipperApptRequestID Required
ConsigneeApptID mailxml:ConsigneeApptID (Optional)
SchedulerID mailxml:SchedulerID Required
SchedulerCorpID mailxml:SchedulerCorpID Required
ShipperMultiStopID mailxml:ShipperMultiStopID (Optional)
ConsigneeMultiStopID mailxml:ConsigneeMultiStopID (Optional)
ShipperStopNumber mailxml:ShipperStopNumber (Optional)
ApptType mailxml:ApptType Required
PickupOrDelivery mailxml:PickupOrDelivery Required
PalletPositionCount mailxml:PalletPositionCount (Optional)
Collapse Derivation Tree:
Collapse References:
mailxml:DeliveryApptShellAcceptmailxml:DeliveryApptShellCreateAccept,
