Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: DeliveryApptUpdateRequest
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
Abstract
Documentation:
Request to update a deliver appointment.

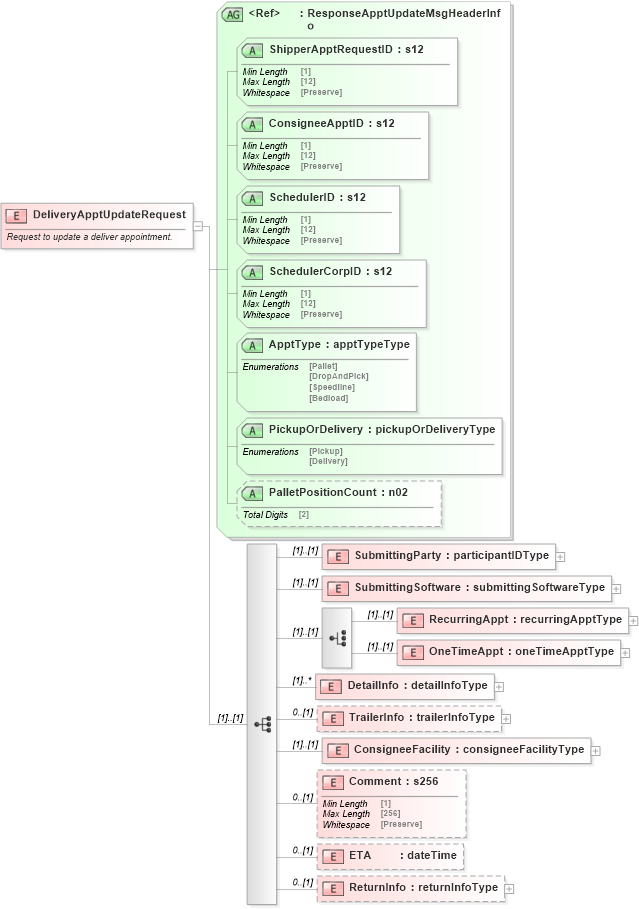

Collapse XSD Schema Diagram:
Drilldown into ReturnInfo in schema mailxml_120308_xsd Drilldown into ETA in schema mailxml_120308_xsd Drilldown into Comment in schema mailxml_120308_xsd Drilldown into ConsigneeFacility in schema mailxml_120308_xsd Drilldown into TrailerInfo in schema mailxml_120308_xsd Drilldown into DetailInfo in schema mailxml_120308_xsd Drilldown into OneTimeAppt in schema mailxml_120308_xsd Drilldown into RecurringAppt in schema mailxml_120308_xsd Drilldown into SubmittingSoftware in schema mailxml_120308_xsd Drilldown into SubmittingParty in schema mailxml_120308_xsd Drilldown into PalletPositionCount in schema mailxml_120308_xsd Drilldown into PickupOrDelivery in schema mailxml_120308_xsd Drilldown into ApptType in schema mailxml_120308_xsd Drilldown into SchedulerCorpID in schema mailxml_120308_xsd Drilldown into SchedulerID in schema mailxml_120308_xsd Drilldown into ConsigneeApptID in schema mailxml_120308_xsd Drilldown into ShipperApptRequestID in schema mailxml_120308_xsd Drilldown into ResponseApptUpdateMsgHeaderInfo in schema mailxml_120308_xsdXSD Diagram of DeliveryApptUpdateRequest in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="DeliveryApptUpdateRequest">
    <xs:annotation>
        <xs:documentation>Request to update a deliver appointment.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element name="SubmittingParty" type="mailxml:participantIDType" />
            <xs:element name="SubmittingSoftware" type="mailxml:submittingSoftwareType" />
            <xs:choice>
                <xs:element name="RecurringAppt" type="mailxml:recurringApptType" />
                <xs:element name="OneTimeAppt" type="mailxml:oneTimeApptType" />
            </xs:choice>
            <xs:element name="DetailInfo" type="mailxml:detailInfoType" maxOccurs="unbounded" />
            <xs:element name="TrailerInfo" type="mailxml:trailerInfoType" minOccurs="0" />
            <xs:element name="ConsigneeFacility" type="mailxml:consigneeFacilityType" />
            <xs:element name="Comment" type="mailxml_base:s256" minOccurs="0" />
            <xs:element name="ETA" type="xs:dateTime" minOccurs="0" />
            <xs:element name="ReturnInfo" type="mailxml:returnInfoType" minOccurs="0" />
        </xs:sequence>
        <xs:attributeGroup ref="mailxml:ResponseApptUpdateMsgHeaderInfo" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SubmittingParty mailxml:SubmittingParty (1) (1)
SubmittingSoftware mailxml:SubmittingSoftware (1) (1)
RecurringAppt mailxml:RecurringAppt (1) (1)
OneTimeAppt mailxml:OneTimeAppt (1) (1)
DetailInfo mailxml:DetailInfo (1) unbounded
TrailerInfo mailxml:TrailerInfo 0 (1)
ConsigneeFacility mailxml:ConsigneeFacility (1) (1)
Comment mailxml:Comment 0 (1)
ETA mailxml:ETA 0 (1)
ReturnInfo mailxml:ReturnInfo 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
ShipperApptRequestID mailxml:ShipperApptRequestID Required
ConsigneeApptID mailxml:ConsigneeApptID Required
SchedulerID mailxml:SchedulerID Required
SchedulerCorpID mailxml:SchedulerCorpID Required
ApptType mailxml:ApptType Required
PickupOrDelivery mailxml:PickupOrDelivery Required
PalletPositionCount mailxml:PalletPositionCount (Optional)
