Definition Type: ComplexType
Name: detailInfoType
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
Abstract

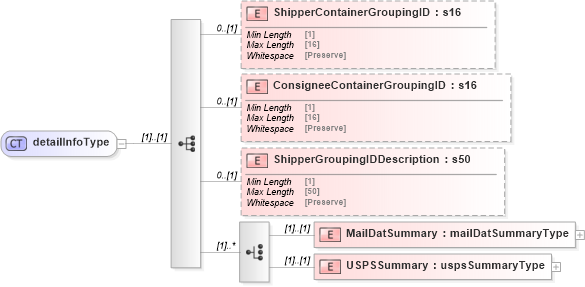

Collapse XSD Schema Diagram:
Drilldown into USPSSummary in schema mailxml_120308_xsd Drilldown into MailDatSummary in schema mailxml_120308_xsd Drilldown into ShipperGroupingIDDescription in schema mailxml_120308_xsd Drilldown into ConsigneeContainerGroupingID in schema mailxml_120308_xsd Drilldown into ShipperContainerGroupingID in schema mailxml_120308_xsdXSD Diagram of detailInfoType in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:complexType name="detailInfoType">
    <xs:sequence>
        <xs:element name="ShipperContainerGroupingID" type="mailxml_base:s16" minOccurs="0" />
        <xs:element name="ConsigneeContainerGroupingID" type="mailxml_base:s16" minOccurs="0" />
        <xs:element name="ShipperGroupingIDDescription" type="mailxml_base:s50" minOccurs="0" />
        <xs:choice maxOccurs="unbounded">
            <xs:element name="MailDatSummary" type="mailxml:mailDatSummaryType" />
            <xs:element name="USPSSummary" type="mailxml:uspsSummaryType" />
        </xs:choice>
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ShipperContainerGroupingID mailxml:ShipperContainerGroupingID 0 (1)
ConsigneeContainerGroupingID mailxml:ConsigneeContainerGroupingID 0 (1)
ShipperGroupingIDDescription mailxml:ShipperGroupingIDDescription 0 (1)
MailDatSummary mailxml:MailDatSummary (1) (1)
USPSSummary mailxml:USPSSummary (1) (1)
Collapse Derivation Tree:
Collapse References:
mailxml:DetailInfo, mailxml:DetailInfo, mailxml:DetailInfo, mailxml:DetailInfo, mailxml:DetailInfo, mailxml:DetailInfo, mailxml:DetailInfo, mailxml:DetailInfo, mailxml:DetailInfo, mailxml:DetailInfo, mailxml:DetailInfomailxml:DetailInfo, mailxml:DetailInfo, mailxml:DetailInfo, mailxml:DetailInfo, mailxml:DetailInfo, mailxml:DetailInfo, mailxml:DetailInfo, mailxml:DetailInfo,
