Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: FullServiceContainerVisibilityQueryResponse
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
Abstract
Documentation:
Response to the Query request for for full service container visisbility information.

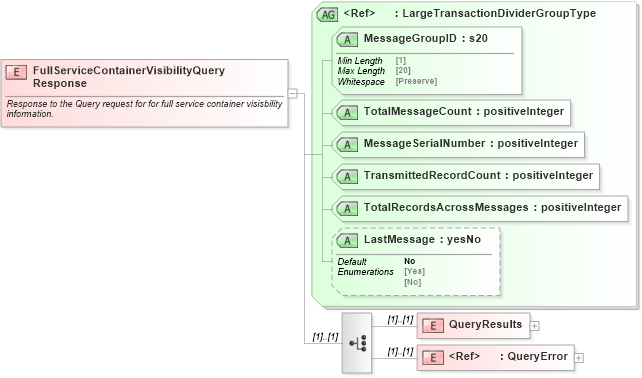

Collapse XSD Schema Diagram:
Drilldown into QueryError in schema mailxml_120308_xsd Drilldown into QueryResults in schema mailxml_120308_xsd Drilldown into LastMessage in schema mailxml_120308_xsd Drilldown into TotalRecordsAcrossMessages in schema mailxml_120308_xsd Drilldown into TransmittedRecordCount in schema mailxml_120308_xsd Drilldown into MessageSerialNumber in schema mailxml_120308_xsd Drilldown into TotalMessageCount in schema mailxml_120308_xsd Drilldown into MessageGroupID in schema mailxml_120308_xsd Drilldown into LargeTransactionDividerGroupType in schema mailxml_120308_xsdXSD Diagram of FullServiceContainerVisibilityQueryResponse in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="FullServiceContainerVisibilityQueryResponse">
    <xs:annotation>
        <xs:documentation>Response to the Query request for for full service container visisbility information.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:choice>
            <xs:element name="QueryResults">
                <xs:annotation>
                    <xs:documentation>
                    </xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:sequence maxOccurs="unbounded">
                        <xs:choice>
                            <xs:sequence>
                                <xs:element name="UserLicenseCode" type="mailxml_base:userLicenseCodeType" />
                                <xs:element name="MaildatJobID" type="mailxml_base:jobIDType" />
                            </xs:sequence>
                            <xs:sequence>
                                <xs:element name="CustomerGroupID" type="mailxml_base:s25" />
                                <xs:element name="MailingGroupID" type="xs:nonNegativeInteger" />
                            </xs:sequence>
                        </xs:choice>
                        <xs:element ref="mailxml:LargeTransactionDividerResult" minOccurs="0" />
                        <xs:element ref="mailxml:ContainerVisibilityEntry" minOccurs="0" maxOccurs="unbounded" />
                        <xs:element name="ReturnInfo" type="mailxml:basicReturnInfoType" minOccurs="0" />
                    </xs:sequence>
                </xs:complexType>
            </xs:element>
            <xs:element ref="mailxml:QueryError" />
        </xs:choice>
        <xs:attributeGroup ref="mailxml:LargeTransactionDividerGroupType" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
QueryResults mailxml:QueryResults (1) (1)
QueryError mailxml:QueryError (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
MessageGroupID mailxml:MessageGroupID Required
TotalMessageCount mailxml:TotalMessageCount Required
MessageSerialNumber mailxml:MessageSerialNumber Required
TransmittedRecordCount mailxml:TransmittedRecordCount Required
TotalRecordsAcrossMessages mailxml:TotalRecordsAcrossMessages Required
LastMessage mailxml:LastMessage No Optional
