Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: IMB
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Type: mailxml:intelligentMailBarcodeType
Containing Schema: mailxml_120308.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

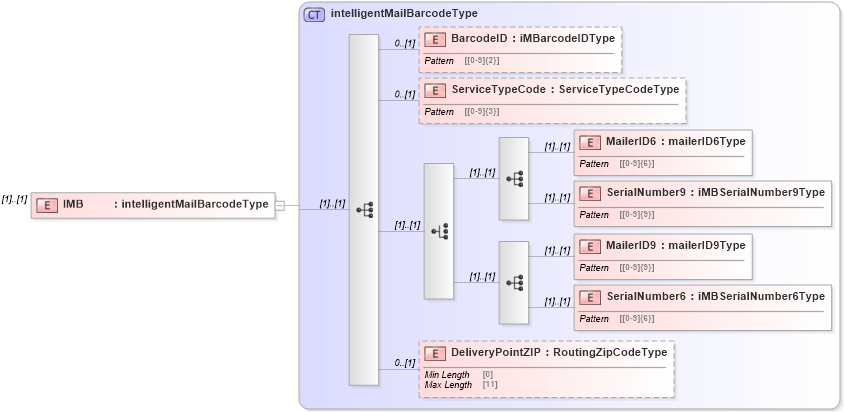

Collapse XSD Schema Diagram:
Drilldown into DeliveryPointZIP in schema mailxml_120308_xsd Drilldown into SerialNumber6 in schema mailxml_120308_xsd Drilldown into MailerID9 in schema mailxml_120308_xsd Drilldown into SerialNumber9 in schema mailxml_120308_xsd Drilldown into MailerID6 in schema mailxml_120308_xsd Drilldown into ServiceTypeCode in schema mailxml_120308_xsd Drilldown into BarcodeID in schema mailxml_120308_xsd Drilldown into intelligentMailBarcodeType in schema mailxml_120308_xsdXSD Diagram of IMB in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="IMB" type="mailxml:intelligentMailBarcodeType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BarcodeID mailxml:BarcodeID 0 (1)
ServiceTypeCode mailxml:ServiceTypeCode 0 (1)
MailerID6 mailxml:MailerID6 (1) (1)
SerialNumber9 mailxml:SerialNumber9 (1) (1)
MailerID9 mailxml:MailerID9 (1) (1)
SerialNumber6 mailxml:SerialNumber6 (1) (1)
DeliveryPointZIP mailxml:DeliveryPointZIP 0 (1)
Collapse Derivation Tree:
