Definition Type: Element
Name: IMbarcodeLowerSerialization
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

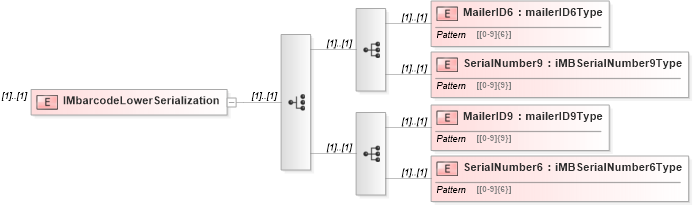

Collapse XSD Schema Diagram:
Drilldown into SerialNumber6 in schema mailxml_120308_xsd Drilldown into MailerID9 in schema mailxml_120308_xsd Drilldown into SerialNumber9 in schema mailxml_120308_xsd Drilldown into MailerID6 in schema mailxml_120308_xsdXSD Diagram of IMbarcodeLowerSerialization in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="IMbarcodeLowerSerialization">
    <xs:complexType>
        <xs:choice>
            <xs:sequence>
                <xs:element name="MailerID6" type="mailxml_base:mailerID6Type" />
                <xs:element name="SerialNumber9" type="mailxml_base:iMBSerialNumber9Type" />
            </xs:sequence>
            <xs:sequence>
                <xs:element name="MailerID9" type="mailxml_base:mailerID9Type" />
                <xs:element name="SerialNumber6" type="mailxml_base:iMBSerialNumber6Type" />
            </xs:sequence>
        </xs:choice>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MailerID6 mailxml:MailerID6 (1) (1)
SerialNumber9 mailxml:SerialNumber9 (1) (1)
MailerID9 mailxml:MailerID9 (1) (1)
SerialNumber6 mailxml:SerialNumber6 (1) (1)
