Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: LinkedContainerCreateReject
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

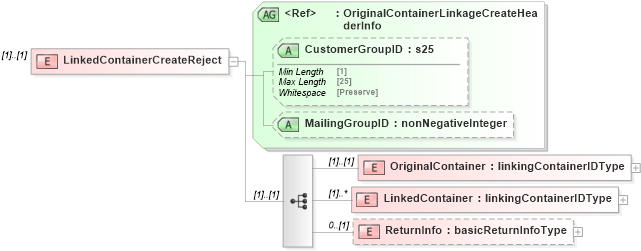

Collapse XSD Schema Diagram:
Drilldown into ReturnInfo in schema mailxml_120308_xsd Drilldown into LinkedContainer in schema mailxml_120308_xsd Drilldown into OriginalContainer in schema mailxml_120308_xsd Drilldown into MailingGroupID in schema mailxml_120308_xsd Drilldown into CustomerGroupID in schema mailxml_120308_xsd Drilldown into OriginalContainerLinkageCreateHeaderInfo in schema mailxml_120308_xsdXSD Diagram of LinkedContainerCreateReject in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="LinkedContainerCreateReject">
    <xs:annotation>
        <xs:documentation>
        </xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element name="OriginalContainer" type="mailxml:linkingContainerIDType" />
            <xs:element name="LinkedContainer" type="mailxml:linkingContainerIDType" maxOccurs="unbounded" />
            <xs:element name="ReturnInfo" type="mailxml:basicReturnInfoType" minOccurs="0" />
        </xs:sequence>
        <xs:attributeGroup ref="mailxml:OriginalContainerLinkageCreateHeaderInfo" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OriginalContainer mailxml:OriginalContainer (1) (1)
LinkedContainer mailxml:LinkedContainer (1) unbounded
ReturnInfo mailxml:ReturnInfo 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
CustomerGroupID mailxml:CustomerGroupID (Optional)
MailingGroupID mailxml:MailingGroupID (Optional)
