Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: MailDatSummary
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Type: mailxml:mailDatSummaryType
Containing Schema: mailxml_120308.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

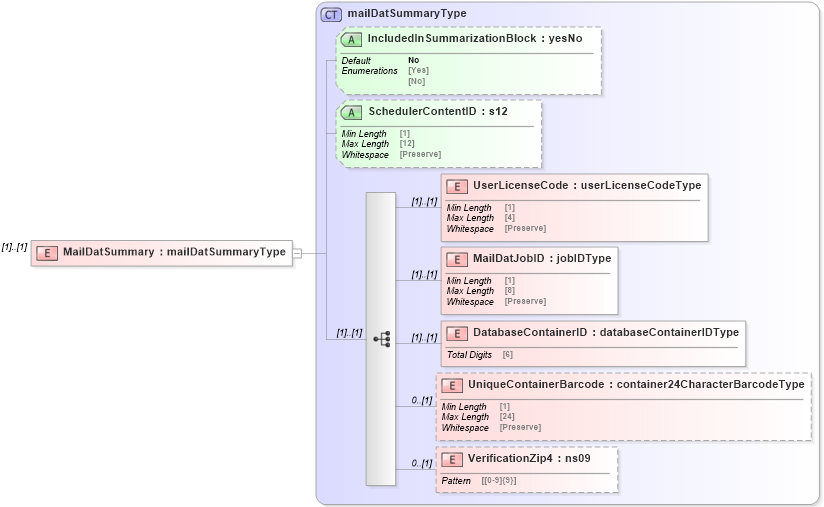

Collapse XSD Schema Diagram:
Drilldown into VerificationZip4 in schema mailxml_120308_xsd Drilldown into UniqueContainerBarcode in schema mailxml_120308_xsd Drilldown into DatabaseContainerID in schema mailxml_120308_xsd Drilldown into MailDatJobID in schema mailxml_120308_xsd Drilldown into UserLicenseCode in schema mailxml_120308_xsd Drilldown into SchedulerContentID in schema mailxml_120308_xsd Drilldown into IncludedInSummarizationBlock in schema mailxml_120308_xsd Drilldown into mailDatSummaryType in schema mailxml_120308_xsdXSD Diagram of MailDatSummary in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="MailDatSummary" type="mailxml:mailDatSummaryType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
UserLicenseCode mailxml:UserLicenseCode (1) (1)
MailDatJobID mailxml:MailDatJobID (1) (1)
DatabaseContainerID mailxml:DatabaseContainerID (1) (1)
UniqueContainerBarcode mailxml:UniqueContainerBarcode 0 (1)
VerificationZip4 mailxml:VerificationZip4 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
IncludedInSummarizationBlock mailxml:IncludedInSummarizationBlock No (Optional)
SchedulerContentID mailxml:SchedulerContentID (Optional)
Collapse Derivation Tree:
