Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: MailingAgentData
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Type: mailxml:mailerDataType
Containing Schema: mailxml_120308.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

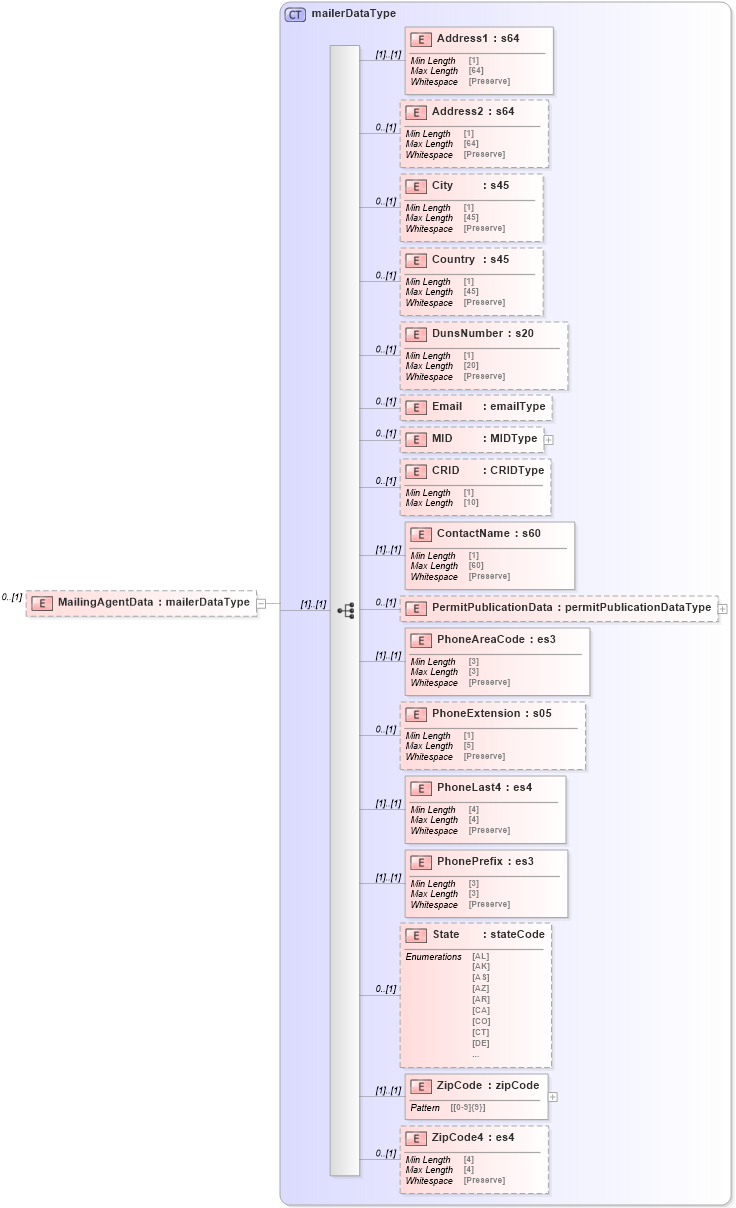

Collapse XSD Schema Diagram:
Drilldown into ZipCode4 in schema mailxml_120308_xsd Drilldown into ZipCode in schema mailxml_120308_xsd Drilldown into State in schema mailxml_120308_xsd Drilldown into PhonePrefix in schema mailxml_120308_xsd Drilldown into PhoneLast4 in schema mailxml_120308_xsd Drilldown into PhoneExtension in schema mailxml_120308_xsd Drilldown into PhoneAreaCode in schema mailxml_120308_xsd Drilldown into PermitPublicationData in schema mailxml_120308_xsd Drilldown into ContactName in schema mailxml_120308_xsd Drilldown into CRID in schema mailxml_120308_xsd Drilldown into MID in schema mailxml_120308_xsd Drilldown into Email in schema mailxml_120308_xsd Drilldown into DunsNumber in schema mailxml_120308_xsd Drilldown into Country in schema mailxml_120308_xsd Drilldown into City in schema mailxml_120308_xsd Drilldown into Address2 in schema mailxml_120308_xsd Drilldown into Address1 in schema mailxml_120308_xsd Drilldown into mailerDataType in schema mailxml_120308_xsdXSD Diagram of MailingAgentData in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="MailingAgentData" type="mailxml:mailerDataType" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Address1 mailxml:Address1 (1) (1)
Address2 mailxml:Address2 0 (1)
City mailxml:City 0 (1)
Country mailxml:Country 0 (1)
DunsNumber mailxml:DunsNumber 0 (1)
Email mailxml:Email 0 (1)
MID mailxml:MID 0 (1)
CRID mailxml:CRID 0 (1)
ContactName mailxml:ContactName (1) (1)
PermitPublicationData mailxml:PermitPublicationData 0 (1)
PhoneAreaCode mailxml:PhoneAreaCode (1) (1)
PhoneExtension mailxml:PhoneExtension 0 (1)
PhoneLast4 mailxml:PhoneLast4 (1) (1)
PhonePrefix mailxml:PhonePrefix (1) (1)
State mailxml:State 0 (1)
ZipCode mailxml:ZipCode (1) (1)
ZipCode4 mailxml:ZipCode4 0 (1)
Collapse Derivation Tree:
