Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: MailingGroup
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Type: mailxml:mailingGroupDataType
Containing Schema: mailxml_120308.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

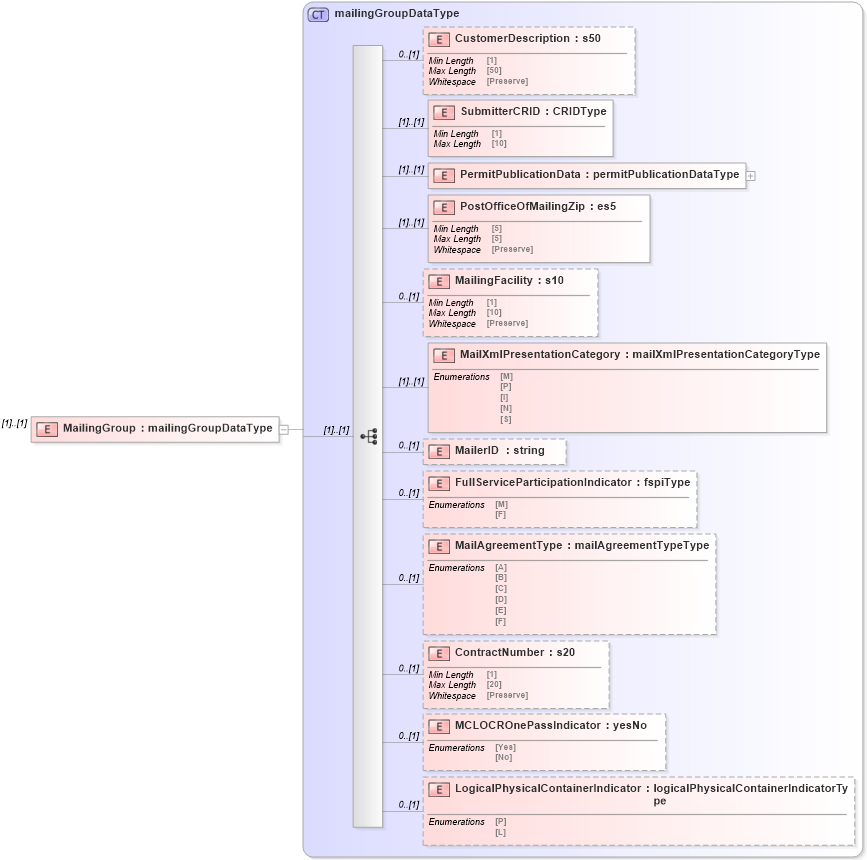

Collapse XSD Schema Diagram:
Drilldown into LogicalPhysicalContainerIndicator in schema mailxml_120308_xsd Drilldown into MCLOCROnePassIndicator in schema mailxml_120308_xsd Drilldown into ContractNumber in schema mailxml_120308_xsd Drilldown into MailAgreementType in schema mailxml_120308_xsd Drilldown into FullServiceParticipationIndicator in schema mailxml_120308_xsd Drilldown into MailerID in schema mailxml_120308_xsd Drilldown into MailXmlPresentationCategory in schema mailxml_120308_xsd Drilldown into MailingFacility in schema mailxml_120308_xsd Drilldown into PostOfficeOfMailingZip in schema mailxml_120308_xsd Drilldown into PermitPublicationData in schema mailxml_120308_xsd Drilldown into SubmitterCRID in schema mailxml_120308_xsd Drilldown into CustomerDescription in schema mailxml_120308_xsd Drilldown into mailingGroupDataType in schema mailxml_120308_xsdXSD Diagram of MailingGroup in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="MailingGroup" type="mailxml:mailingGroupDataType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CustomerDescription mailxml:CustomerDescription 0 (1)
SubmitterCRID mailxml:SubmitterCRID (1) (1)
PermitPublicationData mailxml:PermitPublicationData (1) (1)
PostOfficeOfMailingZip mailxml:PostOfficeOfMailingZip (1) (1)
MailingFacility mailxml:MailingFacility 0 (1)
MailXmlPresentationCategory mailxml:MailXmlPresentationCategory (1) (1)
MailerID mailxml:MailerID 0 (1)
FullServiceParticipationIndicator mailxml:FullServiceParticipationIndicator 0 (1)
MailAgreementType mailxml:MailAgreementType 0 (1)
ContractNumber mailxml:ContractNumber 0 (1)
MCLOCROnePassIndicator mailxml:MCLOCROnePassIndicator 0 (1)
LogicalPhysicalContainerIndicator mailxml:LogicalPhysicalContainerIndicator 0 (1)
Collapse Derivation Tree:
