Documentation for Mail.XML - Mailing supply chain
Definition Type: ComplexType
Name: mailPieceGroupCreateType
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
Abstract
Collapse XSD Schema Diagram:

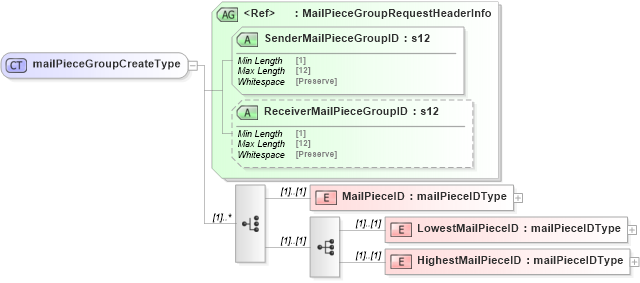

Drilldown into HighestMailPieceID in schema mailxml_120308_xsd Drilldown into LowestMailPieceID in schema mailxml_120308_xsd Drilldown into MailPieceID in schema mailxml_120308_xsd Drilldown into ReceiverMailPieceGroupID in schema mailxml_120308_xsd Drilldown into SenderMailPieceGroupID in schema mailxml_120308_xsd Drilldown into MailPieceGroupRequestHeaderInfo in schema mailxml_120308_xsdXSD Diagram of mailPieceGroupCreateType in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:complexType name="mailPieceGroupCreateType">
    <xs:choice maxOccurs="unbounded">
        <xs:element name="MailPieceID" type="mailxml:mailPieceIDType" />
        <xs:sequence>
            <xs:element name="LowestMailPieceID" type="mailxml:mailPieceIDType" />
            <xs:element name="HighestMailPieceID" type="mailxml:mailPieceIDType" />
        </xs:sequence>
    </xs:choice>
    <xs:attributeGroup ref="mailxml:MailPieceGroupRequestHeaderInfo" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MailPieceID mailxml:MailPieceID (1) (1)
LowestMailPieceID mailxml:LowestMailPieceID (1) (1)
HighestMailPieceID mailxml:HighestMailPieceID (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
SenderMailPieceGroupID mailxml:SenderMailPieceGroupID Required
ReceiverMailPieceGroupID mailxml:ReceiverMailPieceGroupID Optional
Collapse Derivation Tree:
Collapse References:
mailxml:MailPieceGroup, mailxml:MailPieceGroup
