Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: MailPreparerConflict
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

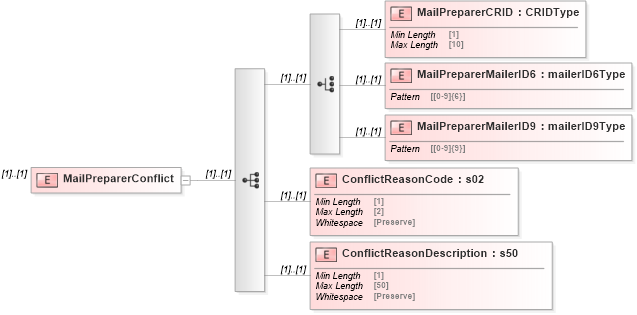

Collapse XSD Schema Diagram:
Drilldown into ConflictReasonDescription in schema mailxml_120308_xsd Drilldown into ConflictReasonCode in schema mailxml_120308_xsd Drilldown into MailPreparerMailerID9 in schema mailxml_120308_xsd Drilldown into MailPreparerMailerID6 in schema mailxml_120308_xsd Drilldown into MailPreparerCRID in schema mailxml_120308_xsdXSD Diagram of MailPreparerConflict in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="MailPreparerConflict">
    <xs:complexType>
        <xs:sequence>
            <xs:choice>
                <xs:element name="MailPreparerCRID" type="mailxml_base:CRIDType" />
                <xs:element name="MailPreparerMailerID6" type="mailxml_base:mailerID6Type" />
                <xs:element name="MailPreparerMailerID9" type="mailxml_base:mailerID9Type" />
            </xs:choice>
            <xs:element name="ConflictReasonCode" type="mailxml_base:s02" />
            <xs:element name="ConflictReasonDescription" type="mailxml_base:s50" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MailPreparerCRID mailxml:MailPreparerCRID (1) (1)
MailPreparerMailerID6 mailxml:MailPreparerMailerID6 (1) (1)
MailPreparerMailerID9 mailxml:MailPreparerMailerID9 (1) (1)
ConflictReasonCode mailxml:ConflictReasonCode (1) (1)
ConflictReasonDescription mailxml:ConflictReasonDescription (1) (1)
