Definition Type: Element
Name: MIDEntry
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Type: mailxml:midEntryType
Containing Schema: mailxml_120308.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract

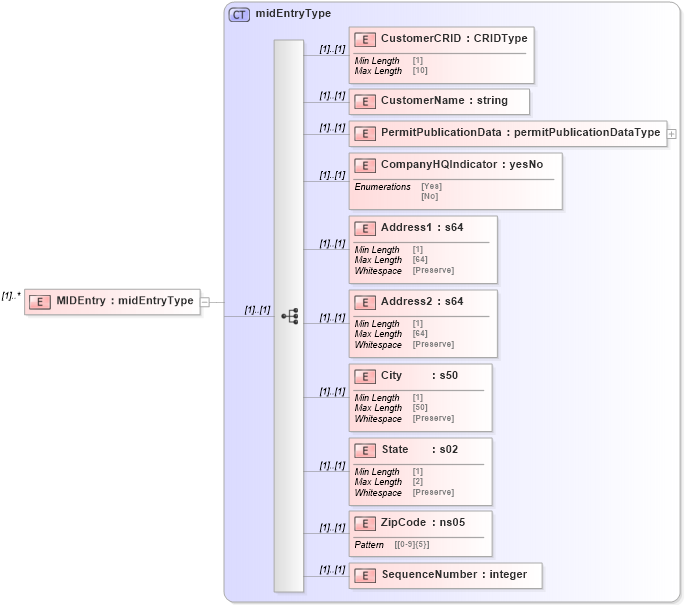

Collapse XSD Schema Diagram:
Drilldown into SequenceNumber in schema mailxml_120308_xsd Drilldown into ZipCode in schema mailxml_120308_xsd Drilldown into State in schema mailxml_120308_xsd Drilldown into City in schema mailxml_120308_xsd Drilldown into Address2 in schema mailxml_120308_xsd Drilldown into Address1 in schema mailxml_120308_xsd Drilldown into CompanyHQIndicator in schema mailxml_120308_xsd Drilldown into PermitPublicationData in schema mailxml_120308_xsd Drilldown into CustomerName in schema mailxml_120308_xsd Drilldown into CustomerCRID in schema mailxml_120308_xsd Drilldown into midEntryType in schema mailxml_120308_xsdXSD Diagram of MIDEntry in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="MIDEntry" type="mailxml:midEntryType" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CustomerCRID mailxml:CustomerCRID (1) (1)
CustomerName mailxml:CustomerName (1) (1)
PermitPublicationData mailxml:PermitPublicationData (1) (1)
CompanyHQIndicator mailxml:CompanyHQIndicator (1) (1)
Address1 mailxml:Address1 (1) (1)
Address2 mailxml:Address2 (1) (1)
City mailxml:City (1) (1)
State mailxml:State (1) (1)
ZipCode mailxml:ZipCode (1) (1)
SequenceNumber mailxml:SequenceNumber (1) (1)
Collapse Derivation Tree:
