Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: OpenMailingGroupReject
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Documentation:
Response from USPS to the customer indicating that a Mailing Group could not be opened and why.

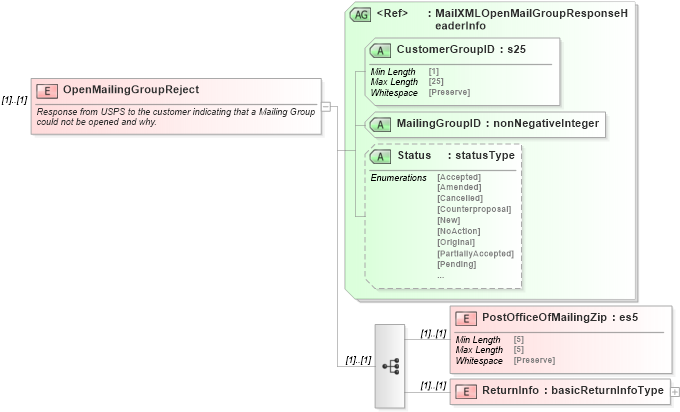

Collapse XSD Schema Diagram:
Drilldown into ReturnInfo in schema mailxml_120308_xsd Drilldown into PostOfficeOfMailingZip in schema mailxml_120308_xsd Drilldown into Status in schema mailxml_120308_xsd Drilldown into MailingGroupID in schema mailxml_120308_xsd Drilldown into CustomerGroupID in schema mailxml_120308_xsd Drilldown into MailXMLOpenMailGroupResponseHeaderInfo in schema mailxml_120308_xsdXSD Diagram of OpenMailingGroupReject in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="OpenMailingGroupReject">
    <xs:annotation>
        <xs:documentation>Response from USPS to the customer indicating that a Mailing Group could not be opened and why.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element name="PostOfficeOfMailingZip" type="mailxml_base:es5" />
            <xs:element name="ReturnInfo" type="mailxml:basicReturnInfoType" />
        </xs:sequence>
        <xs:attributeGroup ref="mailxml:MailXMLOpenMailGroupResponseHeaderInfo" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PostOfficeOfMailingZip mailxml:PostOfficeOfMailingZip (1) (1)
ReturnInfo mailxml:ReturnInfo (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
CustomerGroupID mailxml:CustomerGroupID Required
MailingGroupID mailxml:MailingGroupID Required
Status mailxml:Status (Optional)
