Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: PaymentMessageQueryResponse
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
Abstract
Documentation:
Response to the query request for a payment message.

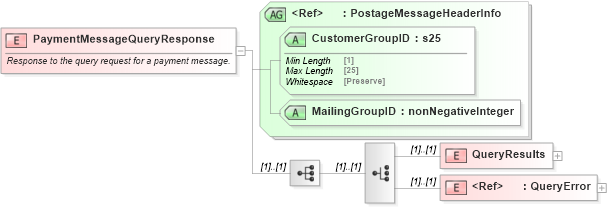

Collapse XSD Schema Diagram:
Drilldown into QueryError in schema mailxml_120308_xsd Drilldown into QueryResults in schema mailxml_120308_xsd Drilldown into MailingGroupID in schema mailxml_120308_xsd Drilldown into CustomerGroupID in schema mailxml_120308_xsd Drilldown into PostageMessageHeaderInfo in schema mailxml_120308_xsdXSD Diagram of PaymentMessageQueryResponse in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="PaymentMessageQueryResponse">
    <xs:annotation>
        <xs:documentation>Response to the query request for a payment message.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:choice>
                <xs:element name="QueryResults">
                    <xs:annotation>
                        <xs:documentation>
                        </xs:documentation>
                    </xs:annotation>
                    <xs:complexType>
                        <xs:sequence minOccurs="0" maxOccurs="unbounded">
                            <xs:element name="PaymentMessage">
                                <xs:complexType>
                                    <xs:sequence>
                                        <xs:element name="PostageStatementTransactionNumber" type="xs:string" />
                                        <xs:element name="CustomerReferenceTransactionNumber" type="xs:string" />
                                        <xs:element name="MailingFacility" type="xs:string" />
                                        <xs:element name="PostageAmountPaid" type="xs:double" />
                                        <xs:element name="DateOfTransaction" type="xs:date" />
                                        <xs:element name="TimeOfTransaction" type="xs:time" />
                                    </xs:sequence>
                                </xs:complexType>
                            </xs:element>
                            <xs:element name="ReturnInfo" type="mailxml:basicReturnInfoType" minOccurs="0" />
                        </xs:sequence>
                    </xs:complexType>
                </xs:element>
                <xs:element ref="mailxml:QueryError" />
            </xs:choice>
        </xs:sequence>
        <xs:attributeGroup ref="mailxml:PostageMessageHeaderInfo" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
QueryResults mailxml:QueryResults (1) (1)
QueryError mailxml:QueryError (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
CustomerGroupID mailxml:CustomerGroupID Required
MailingGroupID mailxml:MailingGroupID Required
