Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: PostageAdjustmentCreateRequest
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
Abstract
Documentation:
Request to create a postage adjustment.

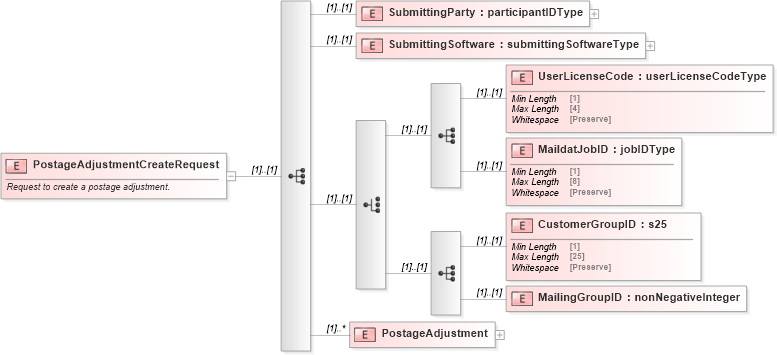

Collapse XSD Schema Diagram:
Drilldown into PostageAdjustment in schema mailxml_120308_xsd Drilldown into MailingGroupID in schema mailxml_120308_xsd Drilldown into CustomerGroupID in schema mailxml_120308_xsd Drilldown into MaildatJobID in schema mailxml_120308_xsd Drilldown into UserLicenseCode in schema mailxml_120308_xsd Drilldown into SubmittingSoftware in schema mailxml_120308_xsd Drilldown into SubmittingParty in schema mailxml_120308_xsdXSD Diagram of PostageAdjustmentCreateRequest in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="PostageAdjustmentCreateRequest">
    <xs:annotation>
        <xs:documentation>Request to create a postage adjustment.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element name="SubmittingParty" type="mailxml:participantIDType" />
            <xs:element name="SubmittingSoftware" type="mailxml:submittingSoftwareType" />
            <xs:choice>
                <xs:sequence>
                    <xs:element name="UserLicenseCode" type="mailxml_base:userLicenseCodeType" />
                    <xs:element name="MaildatJobID" type="mailxml_base:jobIDType" />
                </xs:sequence>
                <xs:sequence>
                    <xs:element name="CustomerGroupID" type="mailxml_base:s25" />
                    <xs:element name="MailingGroupID" type="xs:nonNegativeInteger" />
                </xs:sequence>
            </xs:choice>
            <xs:element name="PostageAdjustment" maxOccurs="unbounded">
                <xs:annotation>
                    <xs:documentation>
                    </xs:documentation>
                </xs:annotation>
                <xs:complexType>
                    <xs:sequence>
                        <xs:element name="PostageAdjustmentUserID" type="mailxml_base:s12" />
                        <xs:element name="StatementID" type="xs:nonNegativeInteger" />
                        <xs:element name="RateType" type="mailxml_base:rateType" minOccurs="0" />
                        <xs:element name="AdjustmentDate" type="xs:date" />
                        <xs:element name="AdjustmentType" type="mailxml_base:adjustmentType" />
                        <xs:element name="AdjustmentAmount" type="xs:double" />
                        <xs:element name="CreditDebitIndicator" type="mailxml_base:creditDebitIndicator" />
                        <xs:element name="TotalPiecesAffected" type="xs:nonNegativeInteger" />
                        <xs:element name="UserComments" type="mailxml_base:s20" minOccurs="0" />
                        <xs:element name="UserPostageStatementID" type="mailxml_base:s10" minOccurs="0" />
                        <xs:element name="AdjustmentStatus" type="mailxml_base:adjustmentStatusType" minOccurs="0" />
                    </xs:sequence>
                </xs:complexType>
            </xs:element>
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SubmittingParty mailxml:SubmittingParty (1) (1)
SubmittingSoftware mailxml:SubmittingSoftware (1) (1)
UserLicenseCode mailxml:UserLicenseCode (1) (1)
MaildatJobID mailxml:MaildatJobID (1) (1)
CustomerGroupID mailxml:CustomerGroupID (1) (1)
MailingGroupID mailxml:MailingGroupID (1) (1)
PostageAdjustment mailxml:PostageAdjustment (1) unbounded
