Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: PostageStatementData
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Type: mailxml:postageStatementDataType
Containing Schema: mailxml_120308.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

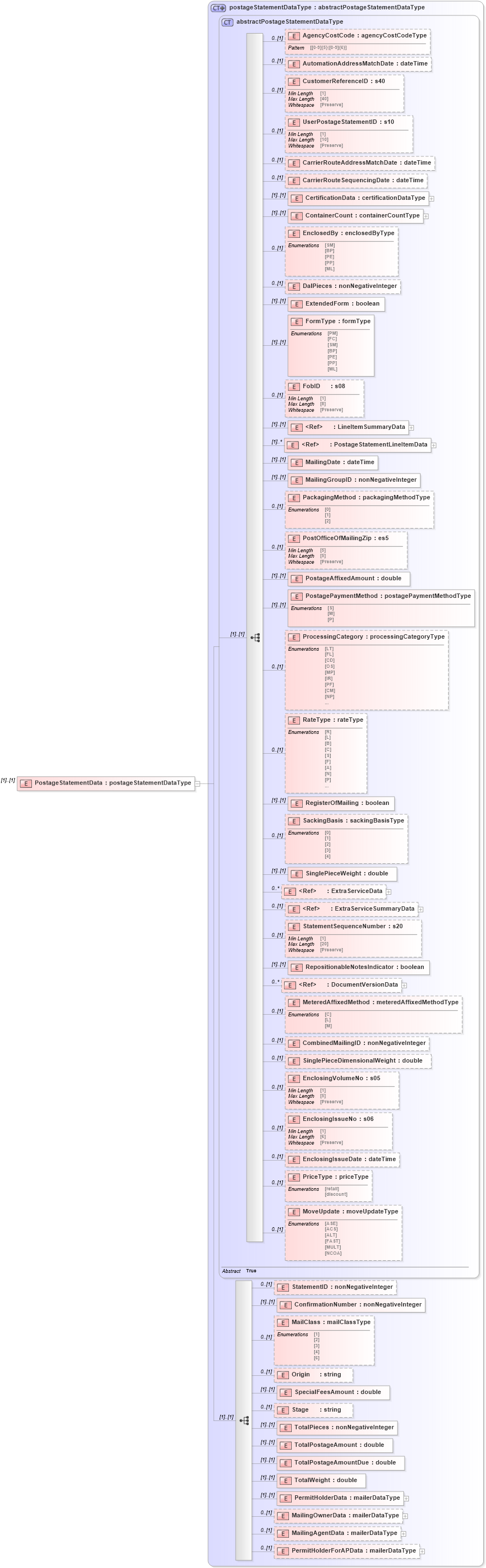

Collapse XSD Schema Diagram:
Drilldown into PermitHolderForAPData in schema mailxml_120308_xsd Drilldown into MailingAgentData in schema mailxml_120308_xsd Drilldown into MailingOwnerData in schema mailxml_120308_xsd Drilldown into PermitHolderData in schema mailxml_120308_xsd Drilldown into TotalWeight in schema mailxml_120308_xsd Drilldown into TotalPostageAmountDue in schema mailxml_120308_xsd Drilldown into TotalPostageAmount in schema mailxml_120308_xsd Drilldown into TotalPieces in schema mailxml_120308_xsd Drilldown into Stage in schema mailxml_120308_xsd Drilldown into SpecialFeesAmount in schema mailxml_120308_xsd Drilldown into Origin in schema mailxml_120308_xsd Drilldown into MailClass in schema mailxml_120308_xsd Drilldown into ConfirmationNumber in schema mailxml_120308_xsd Drilldown into StatementID in schema mailxml_120308_xsd Drilldown into MoveUpdate in schema mailxml_120308_xsd Drilldown into PriceType in schema mailxml_120308_xsd Drilldown into EnclosingIssueDate in schema mailxml_120308_xsd Drilldown into EnclosingIssueNo in schema mailxml_120308_xsd Drilldown into EnclosingVolumeNo in schema mailxml_120308_xsd Drilldown into SinglePieceDimensionalWeight in schema mailxml_120308_xsd Drilldown into CombinedMailingID in schema mailxml_120308_xsd Drilldown into MeteredAffixedMethod in schema mailxml_120308_xsd Drilldown into DocumentVersionData in schema mailxml_120308_xsd Drilldown into RepositionableNotesIndicator in schema mailxml_120308_xsd Drilldown into StatementSequenceNumber in schema mailxml_120308_xsd Drilldown into ExtraServiceSummaryData in schema mailxml_120308_xsd Drilldown into ExtraServiceData in schema mailxml_120308_xsd Drilldown into SinglePieceWeight in schema mailxml_120308_xsd Drilldown into SackingBasis in schema mailxml_120308_xsd Drilldown into RegisterOfMailing in schema mailxml_120308_xsd Drilldown into RateType in schema mailxml_120308_xsd Drilldown into ProcessingCategory in schema mailxml_120308_xsd Drilldown into PostagePaymentMethod in schema mailxml_120308_xsd Drilldown into PostageAffixedAmount in schema mailxml_120308_xsd Drilldown into PostOfficeOfMailingZip in schema mailxml_120308_xsd Drilldown into PackagingMethod in schema mailxml_120308_xsd Drilldown into MailingGroupID in schema mailxml_120308_xsd Drilldown into MailingDate in schema mailxml_120308_xsd Drilldown into PostageStatementLineItemData in schema mailxml_120308_xsd Drilldown into LineItemSummaryData in schema mailxml_120308_xsd Drilldown into FobID in schema mailxml_120308_xsd Drilldown into FormType in schema mailxml_120308_xsd Drilldown into ExtendedForm in schema mailxml_120308_xsd Drilldown into DalPieces in schema mailxml_120308_xsd Drilldown into EnclosedBy in schema mailxml_120308_xsd Drilldown into ContainerCount in schema mailxml_120308_xsd Drilldown into CertificationData in schema mailxml_120308_xsd Drilldown into CarrierRouteSequencingDate in schema mailxml_120308_xsd Drilldown into CarrierRouteAddressMatchDate in schema mailxml_120308_xsd Drilldown into UserPostageStatementID in schema mailxml_120308_xsd Drilldown into CustomerReferenceID in schema mailxml_120308_xsd Drilldown into AutomationAddressMatchDate in schema mailxml_120308_xsd Drilldown into AgencyCostCode in schema mailxml_120308_xsd Drilldown into abstractPostageStatementDataType in schema mailxml_120308_xsd Drilldown into postageStatementDataType in schema mailxml_120308_xsdXSD Diagram of PostageStatementData in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="PostageStatementData" type="mailxml:postageStatementDataType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AgencyCostCode mailxml:AgencyCostCode 0 (1)
AutomationAddressMatchDate mailxml:AutomationAddressMatchDate 0 (1)
CustomerReferenceID mailxml:CustomerReferenceID 0 (1)
UserPostageStatementID mailxml:UserPostageStatementID 0 (1)
CarrierRouteAddressMatchDate mailxml:CarrierRouteAddressMatchDate 0 (1)
CarrierRouteSequencingDate mailxml:CarrierRouteSequencingDate 0 (1)
CertificationData mailxml:CertificationData (1) (1)
ContainerCount mailxml:ContainerCount (1) (1)
EnclosedBy mailxml:EnclosedBy 0 (1)
DalPieces mailxml:DalPieces 0 (1)
ExtendedForm mailxml:ExtendedForm (1) (1)
FormType mailxml:FormType (1) (1)
FobID mailxml:FobID 0 (1)
LineItemSummaryData mailxml:LineItemSummaryData (1) (1)
PostageStatementLineItemData mailxml:PostageStatementLineItemData (1) unbounded
MailingDate mailxml:MailingDate (1) (1)
MailingGroupID mailxml:MailingGroupID (1) (1)
PackagingMethod mailxml:PackagingMethod 0 (1)
PostOfficeOfMailingZip mailxml:PostOfficeOfMailingZip 0 (1)
PostageAffixedAmount mailxml:PostageAffixedAmount (1) (1)
PostagePaymentMethod mailxml:PostagePaymentMethod (1) (1)
ProcessingCategory mailxml:ProcessingCategory 0 (1)
RateType mailxml:RateType 0 (1)
RegisterOfMailing mailxml:RegisterOfMailing (1) (1)
SackingBasis mailxml:SackingBasis 0 (1)
SinglePieceWeight mailxml:SinglePieceWeight (1) (1)
ExtraServiceData mailxml:ExtraServiceData 0 unbounded
ExtraServiceSummaryData mailxml:ExtraServiceSummaryData 0 (1)
StatementSequenceNumber mailxml:StatementSequenceNumber 0 (1)
RepositionableNotesIndicator mailxml:RepositionableNotesIndicator (1) (1)
DocumentVersionData mailxml:DocumentVersionData 0 unbounded
MeteredAffixedMethod mailxml:MeteredAffixedMethod 0 (1)
CombinedMailingID mailxml:CombinedMailingID 0 (1)
SinglePieceDimensionalWeight mailxml:SinglePieceDimensionalWeight 0 (1)
EnclosingVolumeNo mailxml:EnclosingVolumeNo 0 (1)
EnclosingIssueNo mailxml:EnclosingIssueNo 0 (1)
EnclosingIssueDate mailxml:EnclosingIssueDate 0 (1)
PriceType mailxml:PriceType 0 (1)
MoveUpdate mailxml:MoveUpdate 0 (1)
StatementID mailxml:StatementID 0 (1)
ConfirmationNumber mailxml:ConfirmationNumber (1) (1)
MailClass mailxml:MailClass 0 (1)
Origin mailxml:Origin 0 (1)
SpecialFeesAmount mailxml:SpecialFeesAmount (1) (1)
Stage mailxml:Stage 0 (1)
TotalPieces mailxml:TotalPieces (1) (1)
TotalPostageAmount mailxml:TotalPostageAmount (1) (1)
TotalPostageAmountDue mailxml:TotalPostageAmountDue (1) (1)
TotalWeight mailxml:TotalWeight (1) (1)
PermitHolderData mailxml:PermitHolderData (1) (1)
MailingOwnerData mailxml:MailingOwnerData 0 (1)
MailingAgentData mailxml:MailingAgentData 0 (1)
PermitHolderForAPData mailxml:PermitHolderForAPData 0 (1)
Collapse Derivation Tree:
