Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: QualificationReportCreateRequest
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
Abstract
Documentation:
Request by a USPS customer for USPS to create a Qualification Report that is used to submit standardized documentation compliant with the DMM 708.1.

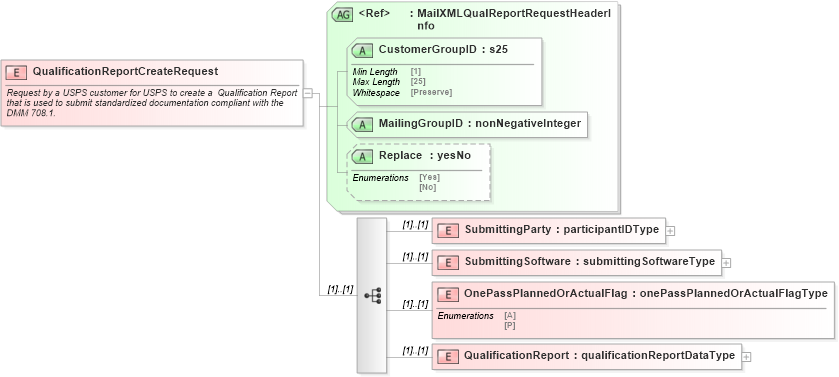

Collapse XSD Schema Diagram:
Drilldown into QualificationReport in schema mailxml_120308_xsd Drilldown into OnePassPlannedOrActualFlag in schema mailxml_120308_xsd Drilldown into SubmittingSoftware in schema mailxml_120308_xsd Drilldown into SubmittingParty in schema mailxml_120308_xsd Drilldown into Replace in schema mailxml_120308_xsd Drilldown into MailingGroupID in schema mailxml_120308_xsd Drilldown into CustomerGroupID in schema mailxml_120308_xsd Drilldown into MailXMLQualReportRequestHeaderInfo in schema mailxml_120308_xsdXSD Diagram of QualificationReportCreateRequest in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="QualificationReportCreateRequest">
    <xs:annotation>
        <xs:documentation>Request by a USPS customer for USPS to create a  Qualification Report that is used to submit standardized documentation compliant with the DMM 708.1.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element name="SubmittingParty" type="mailxml:participantIDType" />
            <xs:element name="SubmittingSoftware" type="mailxml:submittingSoftwareType" />
            <xs:element name="OnePassPlannedOrActualFlag" type="mailxml_base:onePassPlannedOrActualFlagType" />
            <xs:element name="QualificationReport" type="mailxml:qualificationReportDataType" />
        </xs:sequence>
        <xs:attributeGroup ref="mailxml:MailXMLQualReportRequestHeaderInfo" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SubmittingParty mailxml:SubmittingParty (1) (1)
SubmittingSoftware mailxml:SubmittingSoftware (1) (1)
OnePassPlannedOrActualFlag mailxml:OnePassPlannedOrActualFlag (1) (1)
QualificationReport mailxml:QualificationReport (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
CustomerGroupID mailxml:CustomerGroupID Required
MailingGroupID mailxml:MailingGroupID Required
Replace mailxml:Replace (Optional)
