Documentation for Mail.XML - Mailing supply chain
Definition Type: ComplexType
Name: qualificationReportDataType
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
Abstract

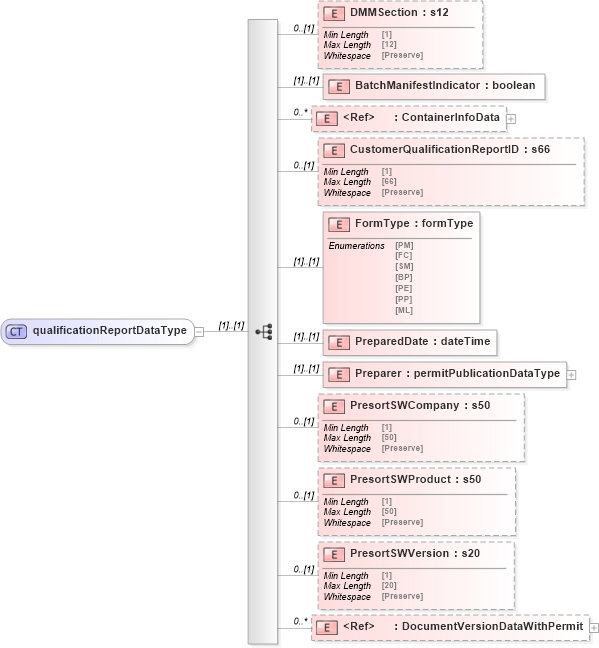

Collapse XSD Schema Diagram:
Drilldown into DocumentVersionDataWithPermit in schema mailxml_120308_xsd Drilldown into PresortSWVersion in schema mailxml_120308_xsd Drilldown into PresortSWProduct in schema mailxml_120308_xsd Drilldown into PresortSWCompany in schema mailxml_120308_xsd Drilldown into Preparer in schema mailxml_120308_xsd Drilldown into PreparedDate in schema mailxml_120308_xsd Drilldown into FormType in schema mailxml_120308_xsd Drilldown into CustomerQualificationReportID in schema mailxml_120308_xsd Drilldown into ContainerInfoData in schema mailxml_120308_xsd Drilldown into BatchManifestIndicator in schema mailxml_120308_xsd Drilldown into DMMSection in schema mailxml_120308_xsdXSD Diagram of qualificationReportDataType in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:complexType name="qualificationReportDataType">
    <xs:sequence>
        <xs:element name="DMMSection" type="mailxml_base:s12" minOccurs="0" />
        <xs:element name="BatchManifestIndicator" type="xs:boolean" />
        <xs:element ref="mailxml:ContainerInfoData" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="CustomerQualificationReportID" type="mailxml_base:s66" minOccurs="0" />
        <xs:element name="FormType" type="mailxml_base:formType" />
        <xs:element name="PreparedDate" type="xs:dateTime" />
        <xs:element name="Preparer" type="mailxml:permitPublicationDataType" />
        <xs:element name="PresortSWCompany" type="mailxml_base:s50" minOccurs="0" />
        <xs:element name="PresortSWProduct" type="mailxml_base:s50" minOccurs="0" />
        <xs:element name="PresortSWVersion" type="mailxml_base:s20" minOccurs="0" />
        <xs:element ref="mailxml:DocumentVersionDataWithPermit" minOccurs="0" maxOccurs="unbounded" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DMMSection mailxml:DMMSection 0 (1)
BatchManifestIndicator mailxml:BatchManifestIndicator (1) (1)
ContainerInfoData mailxml:ContainerInfoData 0 unbounded
CustomerQualificationReportID mailxml:CustomerQualificationReportID 0 (1)
FormType mailxml:FormType (1) (1)
PreparedDate mailxml:PreparedDate (1) (1)
Preparer mailxml:Preparer (1) (1)
PresortSWCompany mailxml:PresortSWCompany 0 (1)
PresortSWProduct mailxml:PresortSWProduct 0 (1)
PresortSWVersion mailxml:PresortSWVersion 0 (1)
DocumentVersionDataWithPermit mailxml:DocumentVersionDataWithPermit 0 unbounded
Collapse Derivation Tree:
Collapse References:
mailxml:QualificationReport, mailxml:QualificationReport
