Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: QualificationReportQueryRequest
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
Abstract
Documentation:
A request from a USPS customer for Qualification Report Data.

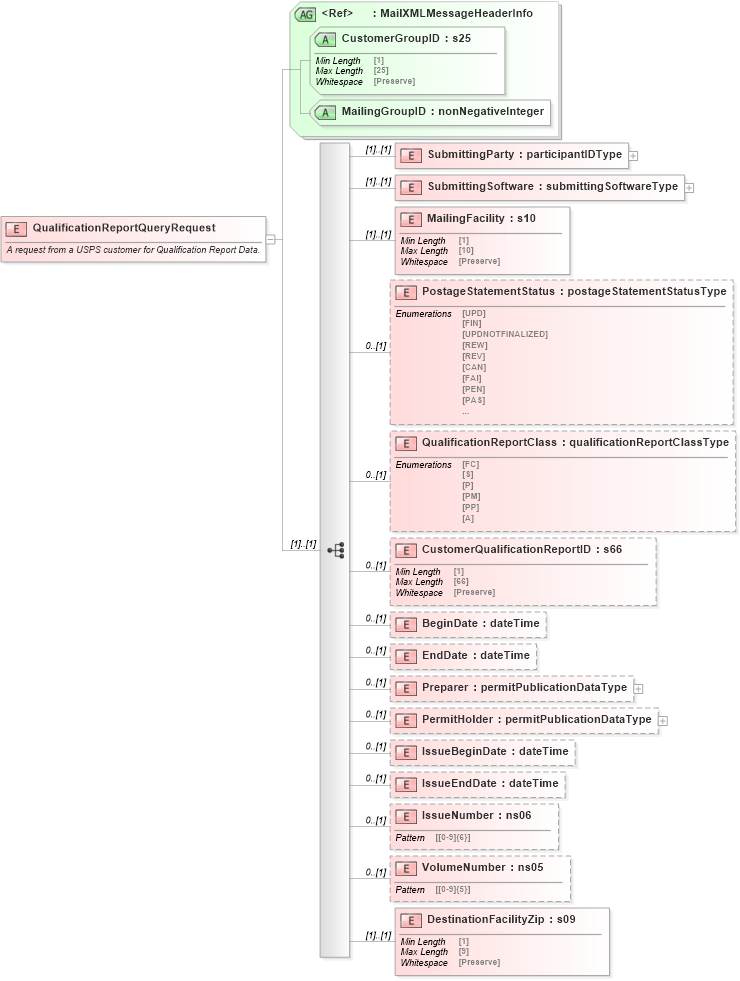

Collapse XSD Schema Diagram:
Drilldown into DestinationFacilityZip in schema mailxml_120308_xsd Drilldown into VolumeNumber in schema mailxml_120308_xsd Drilldown into IssueNumber in schema mailxml_120308_xsd Drilldown into IssueEndDate in schema mailxml_120308_xsd Drilldown into IssueBeginDate in schema mailxml_120308_xsd Drilldown into PermitHolder in schema mailxml_120308_xsd Drilldown into Preparer in schema mailxml_120308_xsd Drilldown into EndDate in schema mailxml_120308_xsd Drilldown into BeginDate in schema mailxml_120308_xsd Drilldown into CustomerQualificationReportID in schema mailxml_120308_xsd Drilldown into QualificationReportClass in schema mailxml_120308_xsd Drilldown into PostageStatementStatus in schema mailxml_120308_xsd Drilldown into MailingFacility in schema mailxml_120308_xsd Drilldown into SubmittingSoftware in schema mailxml_120308_xsd Drilldown into SubmittingParty in schema mailxml_120308_xsd Drilldown into MailingGroupID in schema mailxml_120308_xsd Drilldown into CustomerGroupID in schema mailxml_120308_xsd Drilldown into MailXMLMessageHeaderInfo in schema mailxml_120308_xsdXSD Diagram of QualificationReportQueryRequest in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="QualificationReportQueryRequest">
    <xs:annotation>
        <xs:documentation>A request from a USPS customer for Qualification Report Data.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element name="SubmittingParty" type="mailxml:participantIDType" />
            <xs:element name="SubmittingSoftware" type="mailxml:submittingSoftwareType" />
            <xs:element name="MailingFacility" type="mailxml_base:s10" />
            <xs:element name="PostageStatementStatus" type="mailxml_base:postageStatementStatusType" minOccurs="0" />
            <xs:element name="QualificationReportClass" type="mailxml_base:qualificationReportClassType" minOccurs="0" />
            <xs:element name="CustomerQualificationReportID" type="mailxml_base:s66" minOccurs="0" />
            <xs:element name="BeginDate" type="xs:dateTime" minOccurs="0" />
            <xs:element name="EndDate" type="xs:dateTime" minOccurs="0" />
            <xs:element name="Preparer" type="mailxml:permitPublicationDataType" minOccurs="0" />
            <xs:element name="PermitHolder" type="mailxml:permitPublicationDataType" minOccurs="0" />
            <xs:element name="IssueBeginDate" type="xs:dateTime" minOccurs="0" />
            <xs:element name="IssueEndDate" type="xs:dateTime" minOccurs="0" />
            <xs:element name="IssueNumber" type="mailxml_base:ns06" minOccurs="0" />
            <xs:element name="VolumeNumber" type="mailxml_base:ns05" minOccurs="0" />
            <xs:element name="DestinationFacilityZip" type="mailxml_base:s09" />
        </xs:sequence>
        <xs:attributeGroup ref="mailxml:MailXMLMessageHeaderInfo" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SubmittingParty mailxml:SubmittingParty (1) (1)
SubmittingSoftware mailxml:SubmittingSoftware (1) (1)
MailingFacility mailxml:MailingFacility (1) (1)
PostageStatementStatus mailxml:PostageStatementStatus 0 (1)
QualificationReportClass mailxml:QualificationReportClass 0 (1)
CustomerQualificationReportID mailxml:CustomerQualificationReportID 0 (1)
BeginDate mailxml:BeginDate 0 (1)
EndDate mailxml:EndDate 0 (1)
Preparer mailxml:Preparer 0 (1)
PermitHolder mailxml:PermitHolder 0 (1)
IssueBeginDate mailxml:IssueBeginDate 0 (1)
IssueEndDate mailxml:IssueEndDate 0 (1)
IssueNumber mailxml:IssueNumber 0 (1)
VolumeNumber mailxml:VolumeNumber 0 (1)
DestinationFacilityZip mailxml:DestinationFacilityZip (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
CustomerGroupID mailxml:CustomerGroupID Required
MailingGroupID mailxml:MailingGroupID Required
