Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: RecurringData
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Type: mailxml:recurringApptType
Containing Schema: mailxml_120308.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

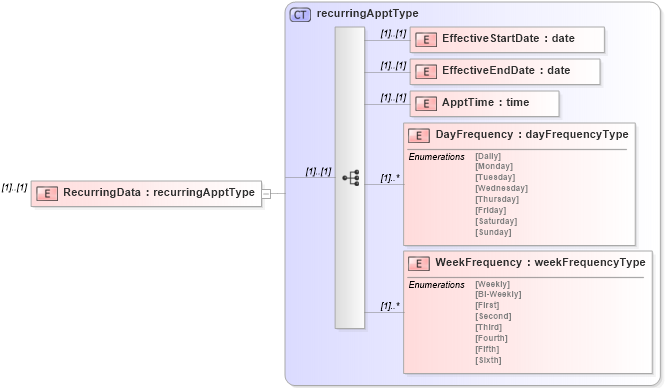

Collapse XSD Schema Diagram:
Drilldown into WeekFrequency in schema mailxml_120308_xsd Drilldown into DayFrequency in schema mailxml_120308_xsd Drilldown into ApptTime in schema mailxml_120308_xsd Drilldown into EffectiveEndDate in schema mailxml_120308_xsd Drilldown into EffectiveStartDate in schema mailxml_120308_xsd Drilldown into recurringApptType in schema mailxml_120308_xsdXSD Diagram of RecurringData in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="RecurringData" type="mailxml:recurringApptType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EffectiveStartDate mailxml:EffectiveStartDate (1) (1)
EffectiveEndDate mailxml:EffectiveEndDate (1) (1)
ApptTime mailxml:ApptTime (1) (1)
DayFrequency mailxml:DayFrequency (1) unbounded
WeekFrequency mailxml:WeekFrequency (1) unbounded
Collapse Derivation Tree:
