Documentation for Mail.XML - Mailing supply chain
Definition Type: ComplexType
Name: sackTrayContainerRecordType
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
Abstract

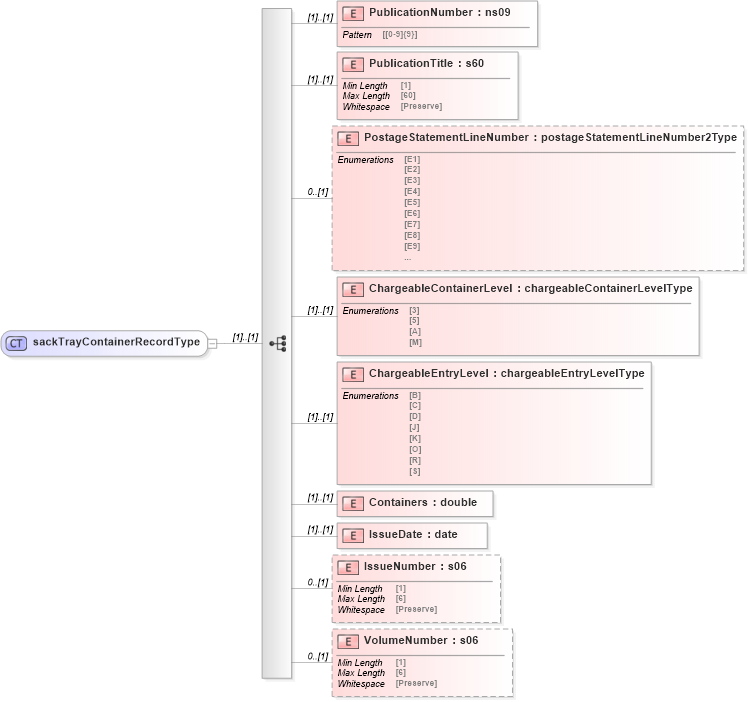

Collapse XSD Schema Diagram:
Drilldown into VolumeNumber in schema mailxml_120308_xsd Drilldown into IssueNumber in schema mailxml_120308_xsd Drilldown into IssueDate in schema mailxml_120308_xsd Drilldown into Containers in schema mailxml_120308_xsd Drilldown into ChargeableEntryLevel in schema mailxml_120308_xsd Drilldown into ChargeableContainerLevel in schema mailxml_120308_xsd Drilldown into PostageStatementLineNumber in schema mailxml_120308_xsd Drilldown into PublicationTitle in schema mailxml_120308_xsd Drilldown into PublicationNumber in schema mailxml_120308_xsdXSD Diagram of sackTrayContainerRecordType in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:complexType name="sackTrayContainerRecordType">
    <xs:sequence>
        <xs:element name="PublicationNumber" type="mailxml_base:ns09" />
        <xs:element name="PublicationTitle" type="mailxml_base:s60" />
        <xs:element name="PostageStatementLineNumber" type="mailxml_base:postageStatementLineNumber2Type" minOccurs="0" />
        <xs:element name="ChargeableContainerLevel" type="mailxml_base:chargeableContainerLevelType" />
        <xs:element name="ChargeableEntryLevel" type="mailxml_base:chargeableEntryLevelType" />
        <xs:element name="Containers" type="xs:double" />
        <xs:element name="IssueDate" type="xs:date" />
        <xs:element name="IssueNumber" type="mailxml_base:s06" minOccurs="0" />
        <xs:element name="VolumeNumber" type="mailxml_base:s06" minOccurs="0" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PublicationNumber mailxml:PublicationNumber (1) (1)
PublicationTitle mailxml:PublicationTitle (1) (1)
PostageStatementLineNumber mailxml:PostageStatementLineNumber 0 (1)
ChargeableContainerLevel mailxml:ChargeableContainerLevel (1) (1)
ChargeableEntryLevel mailxml:ChargeableEntryLevel (1) (1)
Containers mailxml:Containers (1) (1)
IssueDate mailxml:IssueDate (1) (1)
IssueNumber mailxml:IssueNumber 0 (1)
VolumeNumber mailxml:VolumeNumber 0 (1)
Collapse Derivation Tree:
Collapse References:
mailxml:SackTrayContainerRecord, mailxml:SackTrayContainerRecord
