Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: SiblingContainerCreateRequest
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
Abstract
Documentation:
Request to create a uniquely identified sibling container by adding a sibling container to an existing Mail.dat.

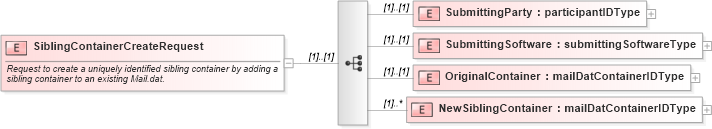

Collapse XSD Schema Diagram:
Drilldown into NewSiblingContainer in schema mailxml_120308_xsd Drilldown into OriginalContainer in schema mailxml_120308_xsd Drilldown into SubmittingSoftware in schema mailxml_120308_xsd Drilldown into SubmittingParty in schema mailxml_120308_xsdXSD Diagram of SiblingContainerCreateRequest in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="SiblingContainerCreateRequest">
    <xs:annotation>
        <xs:documentation>Request to create a uniquely identified sibling container by adding a sibling container to an existing Mail.dat.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element name="SubmittingParty" type="mailxml:participantIDType" />
            <xs:element name="SubmittingSoftware" type="mailxml:submittingSoftwareType" />
            <xs:element name="OriginalContainer" type="mailxml:mailDatContainerIDType" />
            <xs:element name="NewSiblingContainer" type="mailxml:mailDatContainerIDType" maxOccurs="unbounded" />
        </xs:sequence>
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SubmittingParty mailxml:SubmittingParty (1) (1)
SubmittingSoftware mailxml:SubmittingSoftware (1) (1)
OriginalContainer mailxml:OriginalContainer (1) (1)
NewSiblingContainer mailxml:NewSiblingContainer (1) unbounded
