Documentation for Mail.XML - Mailing supply chain
Definition Type: ComplexType
Name: simpleMpuItemType
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
Abstract
Collapse XSD Schema Diagram:

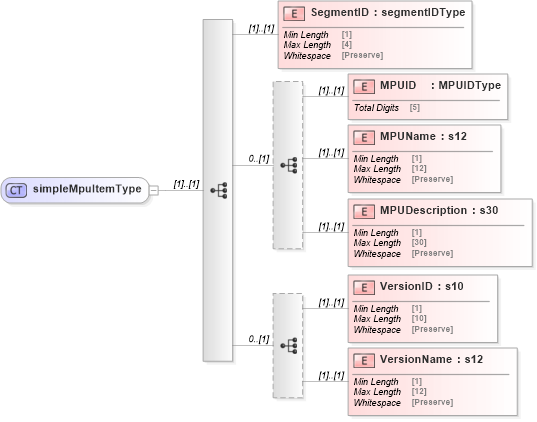

Drilldown into VersionName in schema mailxml_120308_xsd Drilldown into VersionID in schema mailxml_120308_xsd Drilldown into MPUDescription in schema mailxml_120308_xsd Drilldown into MPUName in schema mailxml_120308_xsd Drilldown into MPUID in schema mailxml_120308_xsd Drilldown into SegmentID in schema mailxml_120308_xsdXSD Diagram of simpleMpuItemType in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:complexType name="simpleMpuItemType">
    <xs:sequence>
        <xs:element name="SegmentID" type="mailxml_base:segmentIDType" />
        <xs:sequence minOccurs="0">
            <xs:element name="MPUID" type="mailxml_base:MPUIDType" />
            <xs:element name="MPUName" type="mailxml_base:s12" />
            <xs:element name="MPUDescription" type="mailxml_base:s30" />
        </xs:sequence>
        <xs:sequence minOccurs="0">
            <xs:element name="VersionID" type="mailxml_base:s10" />
            <xs:element name="VersionName" type="mailxml_base:s12" />
        </xs:sequence>
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SegmentID mailxml:SegmentID (1) (1)
MPUID mailxml:MPUID (1) (1)
MPUName mailxml:MPUName (1) (1)
MPUDescription mailxml:MPUDescription (1) (1)
VersionID mailxml:VersionID (1) (1)
VersionName mailxml:VersionName (1) (1)
Collapse Derivation Tree:
Collapse References:
mailxml:MPUItem, mailxml:MPUItem, mailxml:MPUItem
