Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: SummaryRecordUpdate
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Type: mailxml:summaryRecordUpdateType
Containing Schema: mailxml_120308.xsd
MinOccurs 1
MaxOccurs unbounded
Abstract

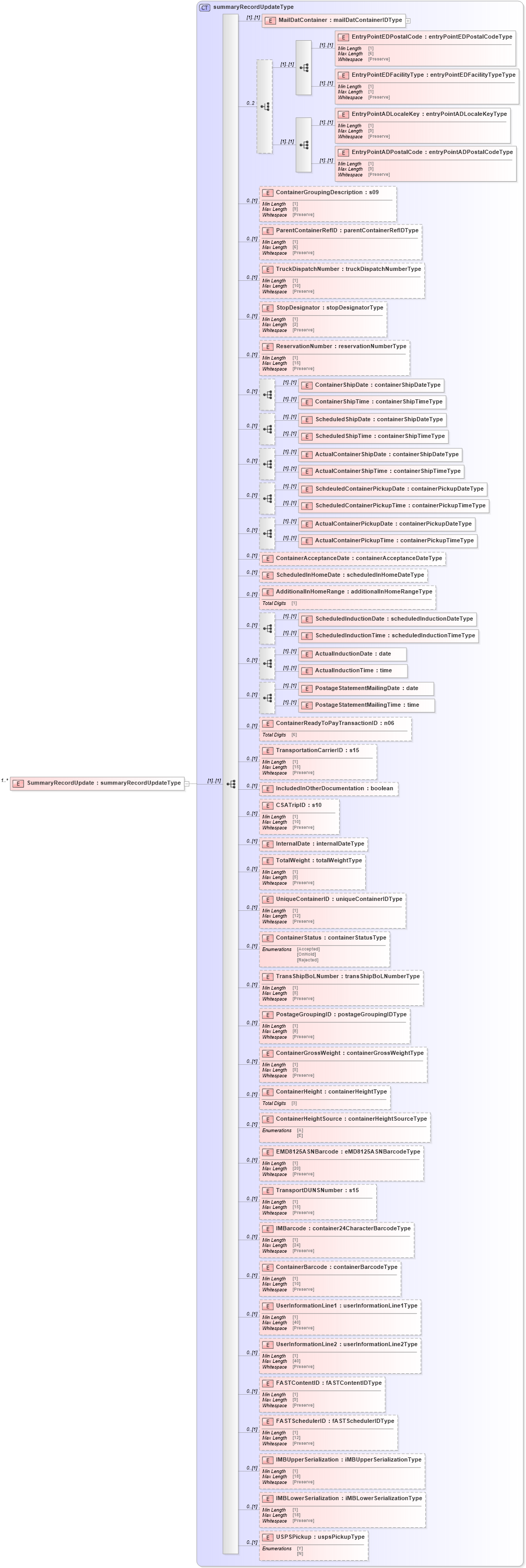

Collapse XSD Schema Diagram:
Drilldown into USPSPickup in schema mailxml_120308_xsd Drilldown into IMBLowerSerialization in schema mailxml_120308_xsd Drilldown into IMBUpperSerialization in schema mailxml_120308_xsd Drilldown into FASTSchedulerID in schema mailxml_120308_xsd Drilldown into FASTContentID in schema mailxml_120308_xsd Drilldown into UserInformationLine2 in schema mailxml_120308_xsd Drilldown into UserInformationLine1 in schema mailxml_120308_xsd Drilldown into ContainerBarcode in schema mailxml_120308_xsd Drilldown into IMBarcode in schema mailxml_120308_xsd Drilldown into TransportDUNSNumber in schema mailxml_120308_xsd Drilldown into EMD8125ASNBarcode in schema mailxml_120308_xsd Drilldown into ContainerHeightSource in schema mailxml_120308_xsd Drilldown into ContainerHeight in schema mailxml_120308_xsd Drilldown into ContainerGrossWeight in schema mailxml_120308_xsd Drilldown into PostageGroupingID in schema mailxml_120308_xsd Drilldown into TransShipBoLNumber in schema mailxml_120308_xsd Drilldown into ContainerStatus in schema mailxml_120308_xsd Drilldown into UniqueContainerID in schema mailxml_120308_xsd Drilldown into TotalWeight in schema mailxml_120308_xsd Drilldown into InternalDate in schema mailxml_120308_xsd Drilldown into CSATripID in schema mailxml_120308_xsd Drilldown into IncludedInOtherDocumentation in schema mailxml_120308_xsd Drilldown into TransportationCarrierID in schema mailxml_120308_xsd Drilldown into ContainerReadyToPayTransactionID in schema mailxml_120308_xsd Drilldown into PostageStatementMailingTime in schema mailxml_120308_xsd Drilldown into PostageStatementMailingDate in schema mailxml_120308_xsd Drilldown into ActualInductionTime in schema mailxml_120308_xsd Drilldown into ActualInductionDate in schema mailxml_120308_xsd Drilldown into ScheduledInductionTime in schema mailxml_120308_xsd Drilldown into ScheduledInductionDate in schema mailxml_120308_xsd Drilldown into AdditionalInHomeRange in schema mailxml_120308_xsd Drilldown into ScheduledInHomeDate in schema mailxml_120308_xsd Drilldown into ContainerAcceptanceDate in schema mailxml_120308_xsd Drilldown into ActualContainerPickupTime in schema mailxml_120308_xsd Drilldown into ActualContainerPickupDate in schema mailxml_120308_xsd Drilldown into ScheduledContainerPickupTime in schema mailxml_120308_xsd Drilldown into SchdeuledContainerPickupDate in schema mailxml_120308_xsd Drilldown into ActualContainerShipTime in schema mailxml_120308_xsd Drilldown into ActualContainerShipDate in schema mailxml_120308_xsd Drilldown into ScheduledShipTime in schema mailxml_120308_xsd Drilldown into ScheduledShipDate in schema mailxml_120308_xsd Drilldown into ContainerShipTime in schema mailxml_120308_xsd Drilldown into ContainerShipDate in schema mailxml_120308_xsd Drilldown into ReservationNumber in schema mailxml_120308_xsd Drilldown into StopDesignator in schema mailxml_120308_xsd Drilldown into TruckDispatchNumber in schema mailxml_120308_xsd Drilldown into ParentContainerRefID in schema mailxml_120308_xsd Drilldown into ContainerGroupingDescription in schema mailxml_120308_xsd Drilldown into EntryPointADPostalCode in schema mailxml_120308_xsd Drilldown into EntryPointADLocaleKey in schema mailxml_120308_xsd Drilldown into EntryPointEDFacilityType in schema mailxml_120308_xsd Drilldown into EntryPointEDPostalCode in schema mailxml_120308_xsd Drilldown into MailDatContainer in schema mailxml_120308_xsd Drilldown into summaryRecordUpdateType in schema mailxml_120308_xsdXSD Diagram of SummaryRecordUpdate in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="SummaryRecordUpdate" type="mailxml:summaryRecordUpdateType" minOccurs="1" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MailDatContainer mailxml:MailDatContainer (1) (1)
EntryPointEDPostalCode mailxml:EntryPointEDPostalCode (1) (1)
EntryPointEDFacilityType mailxml:EntryPointEDFacilityType (1) (1)
EntryPointADLocaleKey mailxml:EntryPointADLocaleKey (1) (1)
EntryPointADPostalCode mailxml:EntryPointADPostalCode (1) (1)
ContainerGroupingDescription mailxml:ContainerGroupingDescription 0 (1)
ParentContainerRefID mailxml:ParentContainerRefID 0 (1)
TruckDispatchNumber mailxml:TruckDispatchNumber 0 (1)
StopDesignator mailxml:StopDesignator 0 (1)
ReservationNumber mailxml:ReservationNumber 0 (1)
ContainerShipDate mailxml:ContainerShipDate (1) (1)
ContainerShipTime mailxml:ContainerShipTime (1) (1)
ScheduledShipDate mailxml:ScheduledShipDate (1) (1)
ScheduledShipTime mailxml:ScheduledShipTime (1) (1)
ActualContainerShipDate mailxml:ActualContainerShipDate (1) (1)
ActualContainerShipTime mailxml:ActualContainerShipTime (1) (1)
SchdeuledContainerPickupDate mailxml:SchdeuledContainerPickupDate (1) (1)
ScheduledContainerPickupTime mailxml:ScheduledContainerPickupTime (1) (1)
ActualContainerPickupDate mailxml:ActualContainerPickupDate (1) (1)
ActualContainerPickupTime mailxml:ActualContainerPickupTime (1) (1)
ContainerAcceptanceDate mailxml:ContainerAcceptanceDate 0 (1)
ScheduledInHomeDate mailxml:ScheduledInHomeDate 0 (1)
AdditionalInHomeRange mailxml:AdditionalInHomeRange 0 (1)
ScheduledInductionDate mailxml:ScheduledInductionDate (1) (1)
ScheduledInductionTime mailxml:ScheduledInductionTime (1) (1)
ActualInductionDate mailxml:ActualInductionDate (1) (1)
ActualInductionTime mailxml:ActualInductionTime (1) (1)
PostageStatementMailingDate mailxml:PostageStatementMailingDate (1) (1)
PostageStatementMailingTime mailxml:PostageStatementMailingTime (1) (1)
ContainerReadyToPayTransactionID mailxml:ContainerReadyToPayTransactionID 0 (1)
TransportationCarrierID mailxml:TransportationCarrierID 0 (1)
IncludedInOtherDocumentation mailxml:IncludedInOtherDocumentation 0 (1)
CSATripID mailxml:CSATripID 0 (1)
InternalDate mailxml:InternalDate 0 (1)
TotalWeight mailxml:TotalWeight 0 (1)
UniqueContainerID mailxml:UniqueContainerID 0 (1)
ContainerStatus mailxml:ContainerStatus 0 (1)
TransShipBoLNumber mailxml:TransShipBoLNumber 0 (1)
PostageGroupingID mailxml:PostageGroupingID 0 (1)
ContainerGrossWeight mailxml:ContainerGrossWeight 0 (1)
ContainerHeight mailxml:ContainerHeight 0 (1)
ContainerHeightSource mailxml:ContainerHeightSource 0 (1)
EMD8125ASNBarcode mailxml:EMD8125ASNBarcode 0 (1)
TransportDUNSNumber mailxml:TransportDUNSNumber 0 (1)
IMBarcode mailxml:IMBarcode 0 (1)
ContainerBarcode mailxml:ContainerBarcode 0 (1)
UserInformationLine1 mailxml:UserInformationLine1 0 (1)
UserInformationLine2 mailxml:UserInformationLine2 0 (1)
FASTContentID mailxml:FASTContentID 0 (1)
FASTSchedulerID mailxml:FASTSchedulerID 0 (1)
IMBUpperSerialization mailxml:IMBUpperSerialization 0 (1)
IMBLowerSerialization mailxml:IMBLowerSerialization 0 (1)
USPSPickup mailxml:USPSPickup 0 (1)
Collapse Derivation Tree:
