Documentation for Mail.XML - Mailing supply chain
Definition Type: Element
Name: UnscheduledConsigneeGoodsReceipt
Namespace: http://idealliance.org/maildat/Specs/md091/mailxml60a/mailxml
Containing Schema: mailxml_120308.xsd
Abstract
Documentation:
A report or message indicating delivery closeout status for an unscheduled delivery.

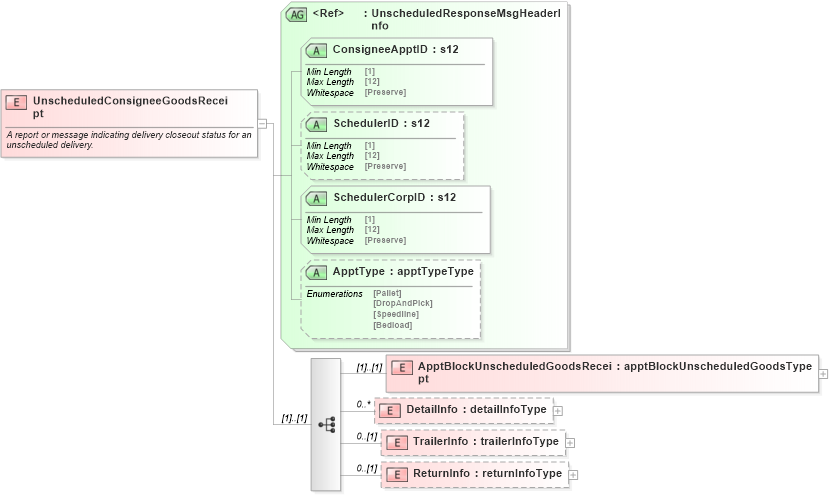

Collapse XSD Schema Diagram:
Drilldown into ReturnInfo in schema mailxml_120308_xsd Drilldown into TrailerInfo in schema mailxml_120308_xsd Drilldown into DetailInfo in schema mailxml_120308_xsd Drilldown into ApptBlockUnscheduledGoodsReceipt in schema mailxml_120308_xsd Drilldown into ApptType in schema mailxml_120308_xsd Drilldown into SchedulerCorpID in schema mailxml_120308_xsd Drilldown into SchedulerID in schema mailxml_120308_xsd Drilldown into ConsigneeApptID in schema mailxml_120308_xsd Drilldown into UnscheduledResponseMsgHeaderInfo in schema mailxml_120308_xsdXSD Diagram of UnscheduledConsigneeGoodsReceipt in schema mailxml_120308_xsd (Mail.XML - Mailing supply chain)
Collapse XSD Schema Code:
<xs:element name="UnscheduledConsigneeGoodsReceipt">
    <xs:annotation>
        <xs:documentation>A report or message indicating delivery closeout status for an unscheduled delivery.</xs:documentation>
    </xs:annotation>
    <xs:complexType>
        <xs:sequence>
            <xs:element name="ApptBlockUnscheduledGoodsReceipt" type="mailxml:apptBlockUnscheduledGoodsType" />
            <xs:element name="DetailInfo" type="mailxml:detailInfoType" minOccurs="0" maxOccurs="unbounded" />
            <xs:element name="TrailerInfo" type="mailxml:trailerInfoType" minOccurs="0" />
            <xs:element name="ReturnInfo" type="mailxml:returnInfoType" minOccurs="0" />
        </xs:sequence>
        <xs:attributeGroup ref="mailxml:UnscheduledResponseMsgHeaderInfo" />
    </xs:complexType>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApptBlockUnscheduledGoodsReceipt mailxml:ApptBlockUnscheduledGoodsReceipt (1) (1)
DetailInfo mailxml:DetailInfo 0 unbounded
TrailerInfo mailxml:TrailerInfo 0 (1)
ReturnInfo mailxml:ReturnInfo 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
ConsigneeApptID mailxml:ConsigneeApptID Required
SchedulerID mailxml:SchedulerID Optional
SchedulerCorpID mailxml:SchedulerCorpID Required
ApptType mailxml:ApptType Optional
