Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: Allowance
Namespace: http://www.openapplications.org/oagis
Containing Schema: Components.xsd
Abstract
Documentation:
Identifies a type of allowance on order related BODs

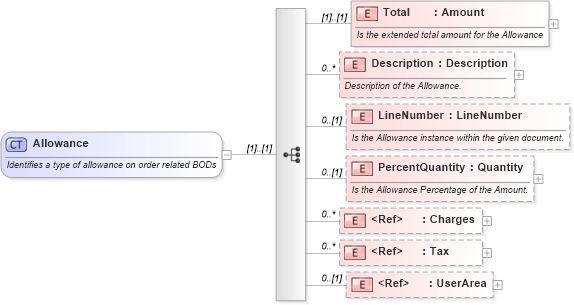

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema meta_xsd Drilldown into Tax in schema components_xsd Drilldown into Charges in schema components_xsd Drilldown into PercentQuantity in schema components_xsd Drilldown into LineNumber in schema components_xsd Drilldown into Description in schema components_xsd Drilldown into Total in schema components_xsdXSD Diagram of Allowance in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xs:complexType name="Allowance">
    <xs:annotation>
        <xs:documentation source="http://www.openapplications.org/oagis">Identifies a type of allowance on order related BODs</xs:documentation>
    </xs:annotation>
    <xs:sequence>
        <xs:element name="Total" type="Amount">
            <xs:annotation>
                <xs:documentation source="http://www.openapplications.org/oagis">Is the extended total amount for the Allowance</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element name="Description" type="Description" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
                <xs:documentation source="http://www.openapplications.org/oagis">Description of the Allowance.</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element name="LineNumber" type="LineNumber" minOccurs="0">
            <xs:annotation>
                <xs:documentation source="http://www.openapplications.org/oagis">Is the Allowance instance within the given document.</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element name="PercentQuantity" type="Quantity" minOccurs="0">
            <xs:annotation>
                <xs:documentation source="http://www.openapplications.org/oagis">Is the Allowance Percentage of the Amount.</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element ref="Charges" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="Tax" minOccurs="0" maxOccurs="unbounded" />
        <xs:element ref="UserArea" minOccurs="0" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Total oa:Total (1) (1)
Description oa:Description 0 unbounded
LineNumber oa:LineNumber 0 (1)
PercentQuantity oa:PercentQuantity 0 (1)
Charges oa:Charges 0 unbounded
Tax oa:Tax 0 unbounded
UserArea oa:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
oa:Allowance
