Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: ConfirmBOD
Namespace: http://www.openapplications.org/oagis
Type: oa:ConfirmBOD
Containing Schema: ConfirmBOD.xsd
Abstract
Documentation:
Replacement for ConfirmBOD. This BOD reports on the outcome of processing a BOD. Only one BODOutcome noun will be returned, corresponding to a previously transmitted BOD that was earmarked for returning outcome notification. Summaary BOD-level outcome is reported in the Header, with noun-specific errors or warnings reported for each noun instance that accompanied the original BOD.

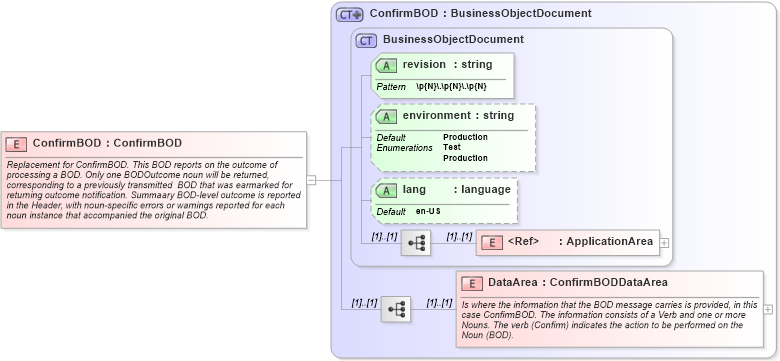

Collapse XSD Schema Diagram:
Drilldown into DataArea in schema confirmbod_xsd Drilldown into ApplicationArea in schema meta_xsd Drilldown into lang in schema meta_xsd Drilldown into environment in schema meta_xsd Drilldown into revision in schema meta_xsd Drilldown into BusinessObjectDocument in schema meta_xsd Drilldown into ConfirmBOD in schema confirmbod_xsdXSD Diagram of ConfirmBOD in schema confirmbod_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xs:element name="ConfirmBOD" type="ConfirmBOD">
    <xs:annotation>
        <xs:documentation source="http://www.openapplications.org/oagis">Replacement for ConfirmBOD. This BOD reports on the outcome of processing a BOD. Only one BODOutcome noun will be returned, corresponding to a previously transmitted  BOD that was earmarked for returning outcome notification. Summaary BOD-level outcome is reported in the Header, with noun-specific errors or warnings reported for each noun instance that accompanied the original BOD.</xs:documentation>
    </xs:annotation>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationArea oa:ApplicationArea (1) (1)
DataArea oa:DataArea (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
revision oa:revision Required
environment oa:environment Production Optional
lang oa:lang en-US Optional
Collapse Derivation Tree:
