Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: Hazard
Namespace: http://www.openapplications.org/oagis
Type: oa:Hazard
Containing Schema: MfgComponents.xsd
Abstract
Documentation:
Identifies a Hazard. Hazards can be associated with Items or with activities such as maintenance operations

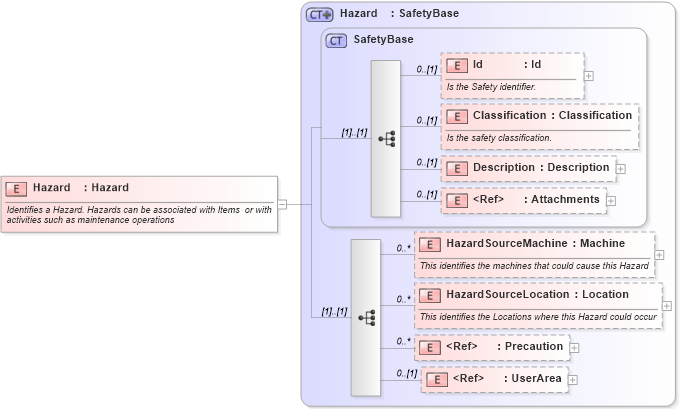

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema meta_xsd Drilldown into Precaution in schema mfgcomponents_xsd Drilldown into HazardSourceLocation in schema mfgcomponents_xsd Drilldown into HazardSourceMachine in schema mfgcomponents_xsd Drilldown into Attachments in schema components_xsd Drilldown into Description in schema mfgcomponents_xsd Drilldown into Classification in schema mfgcomponents_xsd Drilldown into Id in schema mfgcomponents_xsd Drilldown into SafetyBase in schema mfgcomponents_xsd Drilldown into Hazard in schema mfgcomponents_xsdXSD Diagram of Hazard in schema mfgcomponents_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xs:element name="Hazard" type="Hazard">
    <xs:annotation>
        <xs:documentation source="http://www.openapplications.org/oagis">Identifies a Hazard. Hazards can be associated with Items  or with activities such as maintenance operations</xs:documentation>
    </xs:annotation>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Id oa:Id 0 (1)
Classification oa:Classification 0 (1)
Description oa:Description 0 (1)
Attachments oa:Attachments 0 (1)
HazardSourceMachine oa:HazardSourceMachine 0 unbounded
HazardSourceLocation oa:HazardSourceLocation 0 unbounded
Precaution oa:Precaution 0 unbounded
UserArea oa:UserArea 0 (1)
Collapse Derivation Tree:
