Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: ItemResource
Namespace: http://www.openapplications.org/oagis
Type: oa:Resource
Containing Schema: MfgComponents.xsd
Abstract

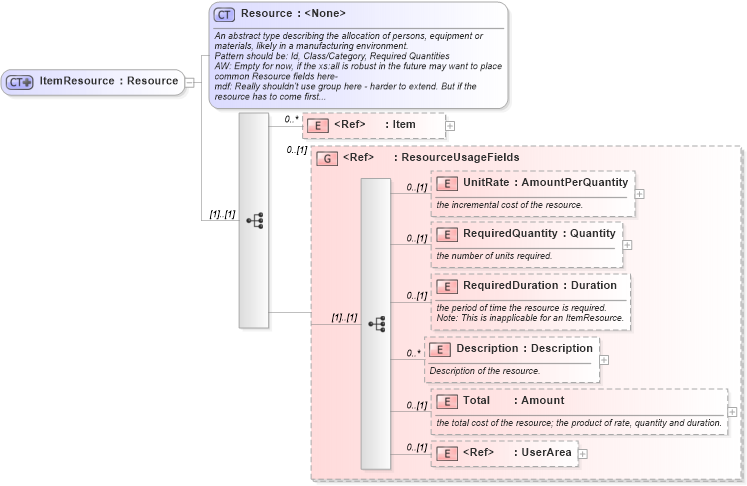

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema meta_xsd Drilldown into Total in schema mfgcomponents_xsd Drilldown into Description in schema mfgcomponents_xsd Drilldown into RequiredDuration in schema mfgcomponents_xsd Drilldown into RequiredQuantity in schema mfgcomponents_xsd Drilldown into UnitRate in schema mfgcomponents_xsd Drilldown into ResourceUsageFields in schema mfgcomponents_xsd Drilldown into Item in schema components_xsd Drilldown into Resource in schema mfgcomponents_xsdXSD Diagram of ItemResource in schema mfgcomponents_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xs:complexType name="ItemResource">
    <xs:complexContent>
        <xs:extension base="Resource">
            <xs:sequence>
                <xs:element ref="Item" minOccurs="0" maxOccurs="unbounded" />
                <xs:group ref="ResourceUsageFields" minOccurs="0" />
            </xs:sequence>
        </xs:extension>
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Item oa:Item 0 unbounded
UnitRate oa:UnitRate 0 (1)
RequiredQuantity oa:RequiredQuantity 0 (1)
RequiredDuration oa:RequiredDuration 0 (1)
Description oa:Description 0 unbounded
Total oa:Total 0 (1)
UserArea oa:UserArea 0 (1)
<xs:group> oa:ResourceUsageFields 0 (1)
Collapse Derivation Tree:
Collapse References:
oa:ItemResource
