Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: OperationReference
Namespace: http://www.openapplications.org/oagis
Type: oa:WIPOperationReference
Containing Schema: MfgComponents.xsd
Abstract
Documentation:
Is a reference to an associated work-in-process operation.

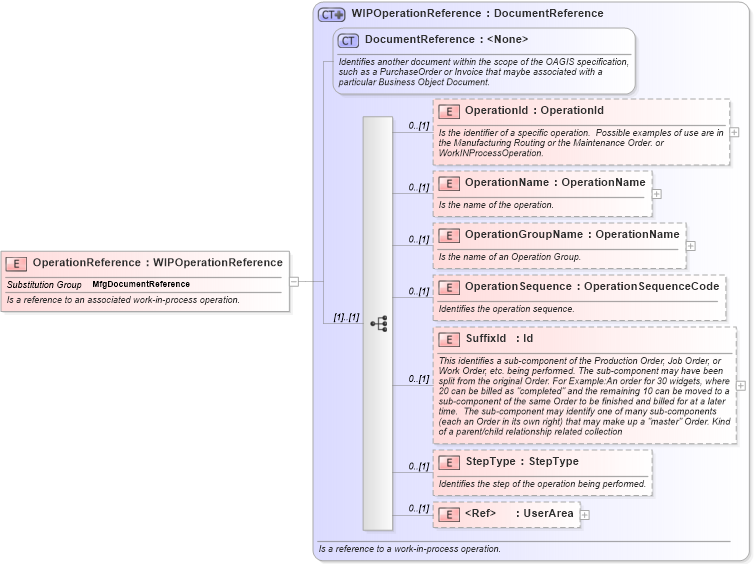

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema meta_xsd Drilldown into StepType in schema mfgcomponents_xsd Drilldown into SuffixId in schema mfgcomponents_xsd Drilldown into OperationSequence in schema mfgcomponents_xsd Drilldown into OperationGroupName in schema mfgcomponents_xsd Drilldown into OperationName in schema mfgcomponents_xsd Drilldown into OperationId in schema mfgcomponents_xsd Drilldown into DocumentReference in schema components_xsd Drilldown into WIPOperationReference in schema mfgcomponents_xsdXSD Diagram of OperationReference in schema mfgcomponents_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xs:element name="OperationReference" type="WIPOperationReference" substitutionGroup="MfgDocumentReference">
    <xs:annotation>
        <xs:documentation source="http://www.openapplications.org/oagis">Is a reference to an associated work-in-process operation.</xs:documentation>
    </xs:annotation>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OperationId oa:OperationId 0 (1)
OperationName oa:OperationName 0 (1)
OperationGroupName oa:OperationGroupName 0 (1)
OperationSequence oa:OperationSequence 0 (1)
SuffixId oa:SuffixId 0 (1)
StepType oa:StepType 0 (1)
UserArea oa:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
oa:MfgDocumentReference
