Definition Type: ComplexType
Name: OrderStatus
Namespace: http://www.openapplications.org/oagis
Containing Schema: Components.xsd
Abstract

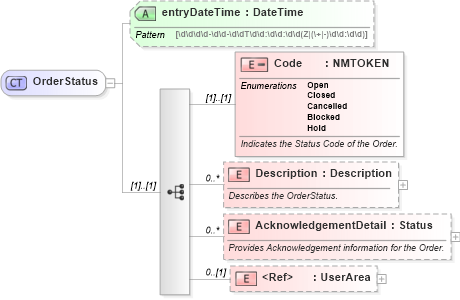

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema meta_xsd Drilldown into AcknowledgementDetail in schema components_xsd Drilldown into Description in schema components_xsd Drilldown into Code in schema components_xsd Drilldown into entryDateTime in schema components_xsdXSD Diagram of OrderStatus in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xs:complexType name="OrderStatus">
    <xs:sequence>
        <xs:element name="Code">
            <xs:annotation>
                <xs:documentation source="http://www.openapplications.org/oagis">Indicates the Status Code of the Order.</xs:documentation>
            </xs:annotation>
            <xs:simpleType>
                <xs:restriction base="xs:NMTOKEN">
                    <xs:enumeration value="Open" />
                    <xs:enumeration value="Closed" />
                    <xs:enumeration value="Cancelled" />
                    <xs:enumeration value="Blocked" />
                    <xs:enumeration value="Hold" />
                </xs:restriction>
            </xs:simpleType>
        </xs:element>
        <xs:element name="Description" type="Description" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
                <xs:documentation source="http://www.openapplications.org/oagis">Describes the OrderStatus.</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element name="AcknowledgementDetail" type="Status" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
                <xs:documentation source="http://www.openapplications.org/oagis">Provides Acknowledgement information for the Order.</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element ref="UserArea" minOccurs="0" />
    </xs:sequence>
    <xs:attribute name="entryDateTime" type="DateTime" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Code oa:Code (1) (1)
Description oa:Description 0 unbounded
AcknowledgementDetail oa:AcknowledgementDetail 0 unbounded
UserArea oa:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
entryDateTime oa:entryDateTime (Optional)
Collapse Derivation Tree:
Collapse References:
oa:OrderStatus
