Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: PersonName
Namespace: http://www.openapplications.org/oagis
Containing Schema: Components.xsd
Abstract
Documentation:
Full specification for a persons name.

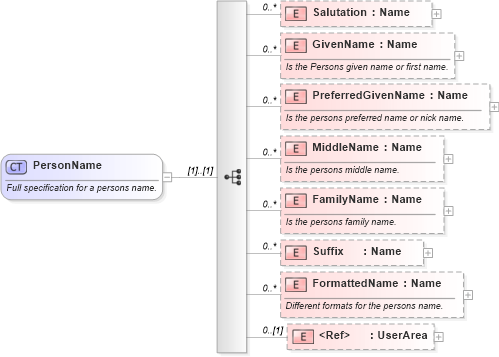

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema meta_xsd Drilldown into FormattedName in schema components_xsd Drilldown into Suffix in schema components_xsd Drilldown into FamilyName in schema components_xsd Drilldown into MiddleName in schema components_xsd Drilldown into PreferredGivenName in schema components_xsd Drilldown into GivenName in schema components_xsd Drilldown into Salutation in schema components_xsdXSD Diagram of PersonName in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xs:complexType name="PersonName">
    <xs:annotation>
        <xs:documentation source="http://www.openapplications.org/oagis">Full specification for a persons name.</xs:documentation>
    </xs:annotation>
    <xs:sequence>
        <xs:element name="Salutation" type="Name" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="GivenName" type="Name" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
                <xs:documentation source="http://www.openapplications.org/oagis">Is the Persons given name or first name.</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element name="PreferredGivenName" type="Name" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
                <xs:documentation source="http://www.openapplications.org/oagis">Is the persons preferred name or nick name.</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element name="MiddleName" type="Name" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
                <xs:documentation source="http://www.openapplications.org/oagis">Is the persons middle name.</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element name="FamilyName" type="Name" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
                <xs:documentation source="http://www.openapplications.org/oagis">Is the persons family name.</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element name="Suffix" type="Name" minOccurs="0" maxOccurs="unbounded" />
        <xs:element name="FormattedName" type="Name" minOccurs="0" maxOccurs="unbounded">
            <xs:annotation>
                <xs:documentation source="http://www.openapplications.org/oagis">Different formats for the persons name.</xs:documentation>
            </xs:annotation>
        </xs:element>
        <xs:element ref="UserArea" minOccurs="0" />
    </xs:sequence>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Salutation oa:Salutation 0 unbounded
GivenName oa:GivenName 0 unbounded
PreferredGivenName oa:PreferredGivenName 0 unbounded
MiddleName oa:MiddleName 0 unbounded
FamilyName oa:FamilyName 0 unbounded
Suffix oa:Suffix 0 unbounded
FormattedName oa:FormattedName 0 unbounded
UserArea oa:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
oa:PersonName, oa:PersonName
