Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: Project
Namespace: http://www.openapplications.org/oagis
Type: oa:Project
Containing Schema: Components.xsd
Abstract
Documentation:
A set of tasks with the following attributes: a singular purpose, a start and end date, those that accumulate costs, and those that may have materials and overhead. SYNONYMS: Job, Process Model, Program, Work Breakdown Structure (WBS) element This is used to enable all relevant sub-systems that submit transactions to the project accounting application to maintain valid values for the key project fields. The target applications for this update would include, but not necessarily be limited to: Accounts Payable Accounts Receivable Budget Order Management Purchasing Time and Labor Travel and Expense

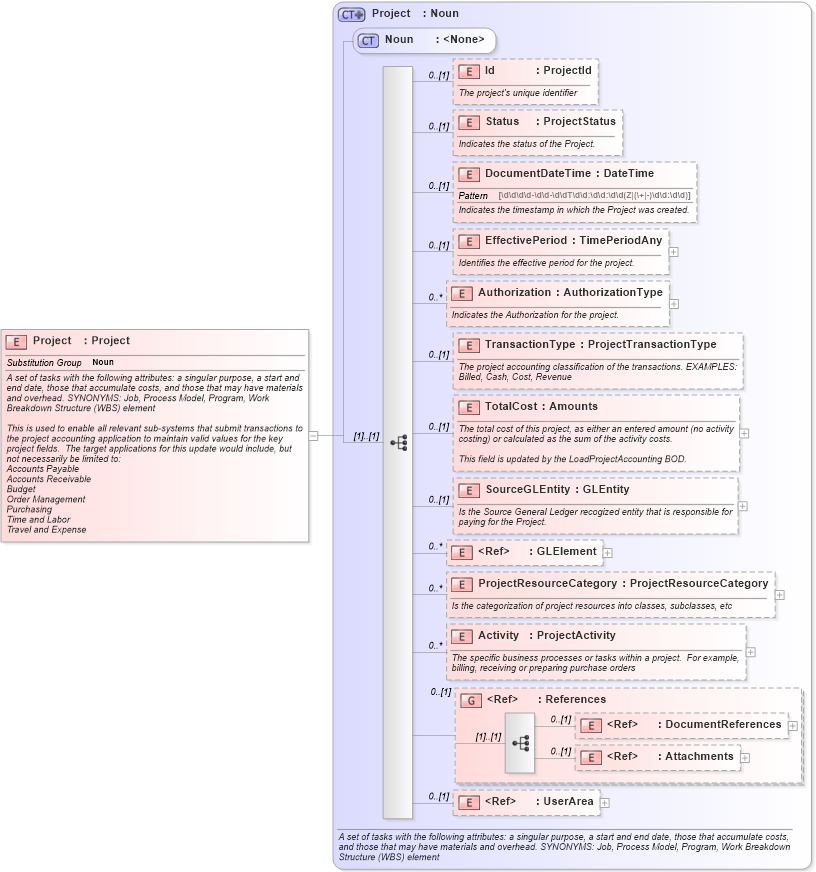

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema meta_xsd Drilldown into Attachments in schema components_xsd Drilldown into DocumentReferences in schema components_xsd Drilldown into References in schema components_xsd Drilldown into Activity in schema components_xsd Drilldown into ProjectResourceCategory in schema components_xsd Drilldown into GLElement in schema components_xsd Drilldown into SourceGLEntity in schema components_xsd Drilldown into TotalCost in schema components_xsd Drilldown into TransactionType in schema components_xsd Drilldown into Authorization in schema components_xsd Drilldown into EffectivePeriod in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into Status in schema components_xsd Drilldown into Id in schema components_xsd Drilldown into Noun in schema meta_xsd Drilldown into Project in schema components_xsdXSD Diagram of Project in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xs:element name="Project" type="Project" substitutionGroup="Noun">
    <xs:annotation>
        <xs:documentation source="http://www.openapplications.org/oagis">A set of tasks with the following attributes: a singular purpose, a start and end date, those that accumulate costs, and those that may have materials and overhead. SYNONYMS: Job, Process Model, Program, Work Breakdown Structure (WBS) element

This is used to enable all relevant sub-systems that submit transactions to the project accounting application to maintain valid values for the key project fields.  The target applications for this update would include, but not necessarily be limited to:
Accounts Payable
Accounts Receivable
Budget
Order Management
Purchasing
Time and Labor
Travel and Expense</xs:documentation>
    </xs:annotation>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Id oa:Id 0 (1)
Status oa:Status 0 (1)
DocumentDateTime oa:DocumentDateTime 0 (1)
EffectivePeriod oa:EffectivePeriod 0 (1)
Authorization oa:Authorization 0 unbounded
TransactionType oa:TransactionType 0 (1)
TotalCost oa:TotalCost 0 (1)
SourceGLEntity oa:SourceGLEntity 0 (1)
GLElement oa:GLElement 0 unbounded
ProjectResourceCategory oa:ProjectResourceCategory 0 unbounded
Activity oa:Activity 0 unbounded
DocumentReferences oa:DocumentReferences 0 (1)
Attachments oa:Attachments 0 (1)
UserArea oa:UserArea 0 (1)
<xs:group> oa:References 0 (1)
Collapse Derivation Tree:
Collapse References:
oa:Noun
