Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: TimePeriodAny
Namespace: http://www.openapplications.org/oagis
Containing Schema: Fields.xsd
Abstract

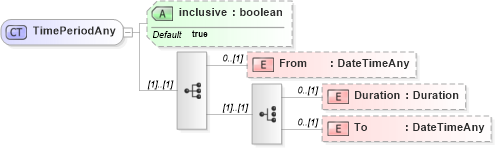

Collapse XSD Schema Diagram:
Drilldown into To in schema fields_xsd Drilldown into Duration in schema fields_xsd Drilldown into From in schema fields_xsd Drilldown into inclusive in schema fields_xsdXSD Diagram of TimePeriodAny in schema fields_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xs:complexType name="TimePeriodAny">
    <xs:sequence>
        <xs:element name="From" type="DateTimeAny" minOccurs="0" />
        <xs:choice>
            <xs:element name="Duration" type="Duration" minOccurs="0" />
            <xs:element name="To" type="DateTimeAny" minOccurs="0" />
        </xs:choice>
    </xs:sequence>
    <xs:attribute name="inclusive" type="xs:boolean" use="optional" default="true" />
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
From oa:From 0 (1)
Duration oa:Duration 0 (1)
To oa:To 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
inclusive oa:inclusive true Optional
Collapse Derivation Tree:
Collapse References:
oa:AccountingPeriod, oa:EffectivePeriod, oa:EffectivePeriod, oa:EffectivePeriodoa:EffectiveTimePeriod, oa:PayrollPeriod,
