Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: AccountingDateType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd
Abstract

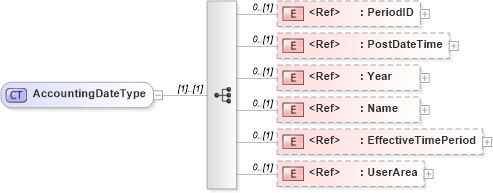

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into EffectiveTimePeriod in schema components_xsd Drilldown into Name in schema fields_xsd Drilldown into Year in schema fields_xsd Drilldown into PostDateTime in schema fields_xsd Drilldown into PeriodID in schema fields_xsdXSD Diagram of AccountingDateType in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="AccountingDateType">
    <xsd:sequence>
        <xsd:element ref="PeriodID" minOccurs="0" />
        <xsd:element ref="PostDateTime" minOccurs="0" />
        <xsd:element ref="Year" minOccurs="0" />
        <xsd:element ref="Name" minOccurs="0" />
        <xsd:element ref="EffectiveTimePeriod" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PeriodID nsA:PeriodID 0 (1)
PostDateTime nsA:PostDateTime 0 (1)
Year nsA:Year 0 (1)
Name nsA:Name 0 (1)
EffectiveTimePeriod nsA:EffectiveTimePeriod 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:AccountingDate
