Documentation for Open Applications Group (OAGIS)
Definition Type: Group
Name: ActualResourceGroup
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: ManufacturingComponents.xsd

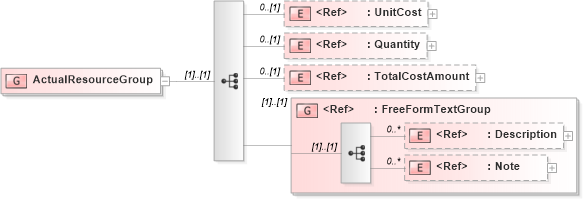

Collapse XSD Schema Diagram:
Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into TotalCostAmount in schema fields_xsd Drilldown into Quantity in schema fields_xsd Drilldown into UnitCost in schema components_xsdXSD Diagram of ActualResourceGroup in schema manufacturingcomponents_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:group name="ActualResourceGroup">
    <xsd:sequence>
        <xsd:element ref="UnitCost" minOccurs="0" />
        <xsd:element ref="Quantity" minOccurs="0" />
        <xsd:element ref="TotalCostAmount" minOccurs="0" />
        <xsd:group ref="FreeFormTextGroup" />
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
UnitCost nsA:UnitCost 0 (1)
Quantity nsA:Quantity 0 (1)
TotalCostAmount nsA:TotalCostAmount 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
<xs:group> nsA:FreeFormTextGroup (1) (1)
