Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: Allowance
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:AllowanceType
Containing Schema: Components.xsd
Abstract
Documentation:
Identifies the discount or allowance that the Customer is to receive off of the TotalAmount owed as a result of the associated document or sub-portion of a document.

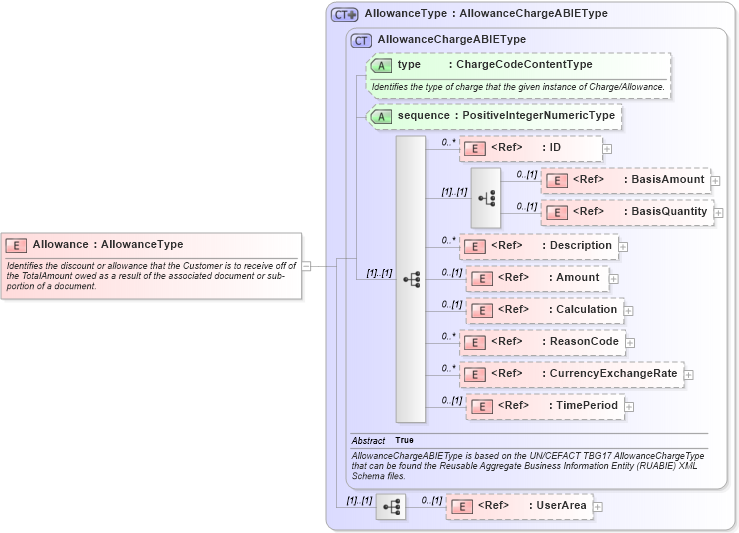

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into TimePeriod in schema components_xsd Drilldown into CurrencyExchangeRate in schema components_xsd Drilldown into ReasonCode in schema fields_xsd Drilldown into Calculation in schema components_xsd Drilldown into Amount in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into BasisQuantity in schema fields_xsd Drilldown into BasisAmount in schema fields_xsd Drilldown into ID in schema fields_xsd Drilldown into sequence in schema components_xsd Drilldown into type in schema components_xsd Drilldown into AllowanceChargeABIEType in schema components_xsd Drilldown into AllowanceType in schema components_xsdXSD Diagram of Allowance in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="Allowance" type="AllowanceType">
    <xsd:annotation>
        <xsd:documentation>Identifies the discount or allowance that the Customer is to receive off of the TotalAmount owed as a result of the associated document or sub-portion of a document.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 unbounded
BasisAmount nsA:BasisAmount 0 (1)
BasisQuantity nsA:BasisQuantity 0 (1)
Description nsA:Description 0 unbounded
Amount nsA:Amount 0 (1)
Calculation nsA:Calculation 0 (1)
ReasonCode nsA:ReasonCode 0 unbounded
CurrencyExchangeRate nsA:CurrencyExchangeRate 0 unbounded
TimePeriod nsA:TimePeriod 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
type nsA:type Optional
sequence nsA:sequence (Optional)
Collapse Derivation Tree:
