Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: AllowanceCharge
Namespace: http://www.openapplications.org/oagis/9/reusableaggregatebusinessinformationentity/0.1
Type: ram:AllowanceChargeType
Containing Schema: ReusableAggregateBusinessInformationEntity.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

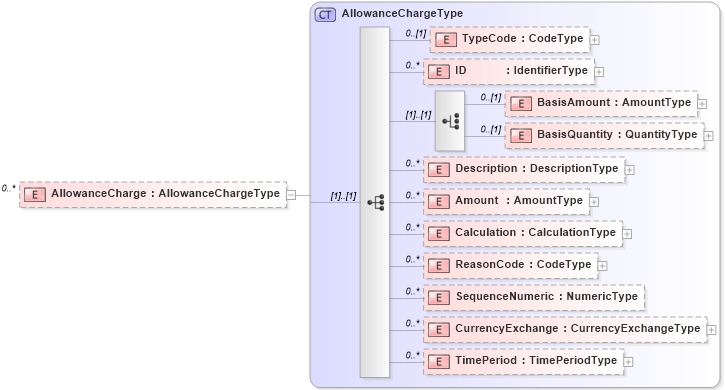

Collapse XSD Schema Diagram:
Drilldown into TimePeriod in schema reusableaggregatebusinessinformationentity_xsd Drilldown into CurrencyExchange in schema reusableaggregatebusinessinformationentity_xsd Drilldown into SequenceNumeric in schema reusableaggregatebusinessinformationentity_xsd Drilldown into ReasonCode in schema reusableaggregatebusinessinformationentity_xsd Drilldown into Calculation in schema reusableaggregatebusinessinformationentity_xsd Drilldown into Amount in schema reusableaggregatebusinessinformationentity_xsd Drilldown into Description in schema reusableaggregatebusinessinformationentity_xsd Drilldown into BasisQuantity in schema reusableaggregatebusinessinformationentity_xsd Drilldown into BasisAmount in schema reusableaggregatebusinessinformationentity_xsd Drilldown into ID in schema reusableaggregatebusinessinformationentity_xsd Drilldown into TypeCode in schema reusableaggregatebusinessinformationentity_xsd Drilldown into AllowanceChargeType in schema reusableaggregatebusinessinformationentity_xsdXSD Diagram of AllowanceCharge in schema reusableaggregatebusinessinformationentity_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="AllowanceCharge" type="ram:AllowanceChargeType" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TypeCode ram:TypeCode 0 (1)
ID ram:ID 0 unbounded
BasisAmount ram:BasisAmount 0 (1)
BasisQuantity ram:BasisQuantity 0 (1)
Description ram:Description 0 unbounded
Amount ram:Amount 0 unbounded
Calculation ram:Calculation 0 unbounded
ReasonCode ram:ReasonCode 0 unbounded
SequenceNumeric ram:SequenceNumeric 0 unbounded
CurrencyExchange ram:CurrencyExchange 0 unbounded
TimePeriod ram:TimePeriod 0 unbounded
Collapse Derivation Tree:
