Definition Type: ComplexType
Name: AuthorizationABIEType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd
Abstract
Documentation:
AuthorizationABIEType is based on UN/CEFACT TBG17 ABIE AuthorizationType which is found in the RUABIE file.

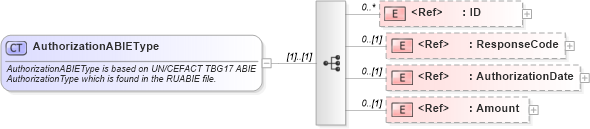

Collapse XSD Schema Diagram:
Drilldown into Amount in schema fields_xsd Drilldown into AuthorizationDate in schema fields_xsd Drilldown into ResponseCode in schema fields_xsd Drilldown into ID in schema fields_xsdXSD Diagram of AuthorizationABIEType in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="AuthorizationABIEType">
    <xsd:annotation>
        <xsd:documentation>AuthorizationABIEType is based on UN/CEFACT TBG17 ABIE AuthorizationType which is found in the RUABIE file.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="ID" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ResponseCode" minOccurs="0" />
        <xsd:element ref="AuthorizationDate" minOccurs="0" />
        <xsd:element ref="Amount" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 unbounded
ResponseCode nsA:ResponseCode 0 (1)
AuthorizationDate nsA:AuthorizationDate 0 (1)
Amount nsA:Amount 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:PaymentAuthorizationABIEType
