Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: Basis
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:AllowanceChargeBasisType
Containing Schema: Components.xsd
Abstract
Documentation:
Indicates the base amount from which the charge/allowance is derived.

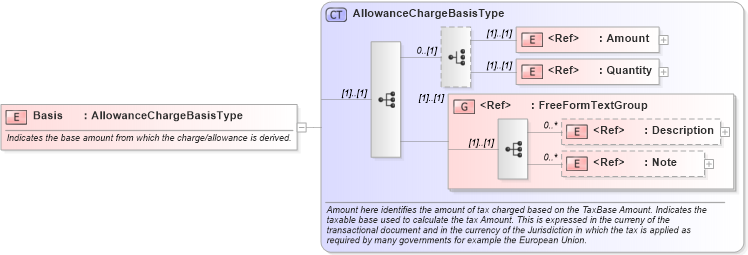

Collapse XSD Schema Diagram:
Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into Quantity in schema fields_xsd Drilldown into Amount in schema fields_xsd Drilldown into AllowanceChargeBasisType in schema components_xsdXSD Diagram of Basis in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="Basis" type="AllowanceChargeBasisType">
    <xsd:annotation>
        <xsd:documentation>Indicates the base amount from which the charge/allowance is derived.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Amount nsA:Amount (1) (1)
Quantity nsA:Quantity (1) (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
<xs:group> nsA:FreeFormTextGroup (1) (1)
Collapse Derivation Tree:
