Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: BOMItemDataType
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:ManufacturingItemBaseType
Containing Schema: BOM.xsd
Abstract

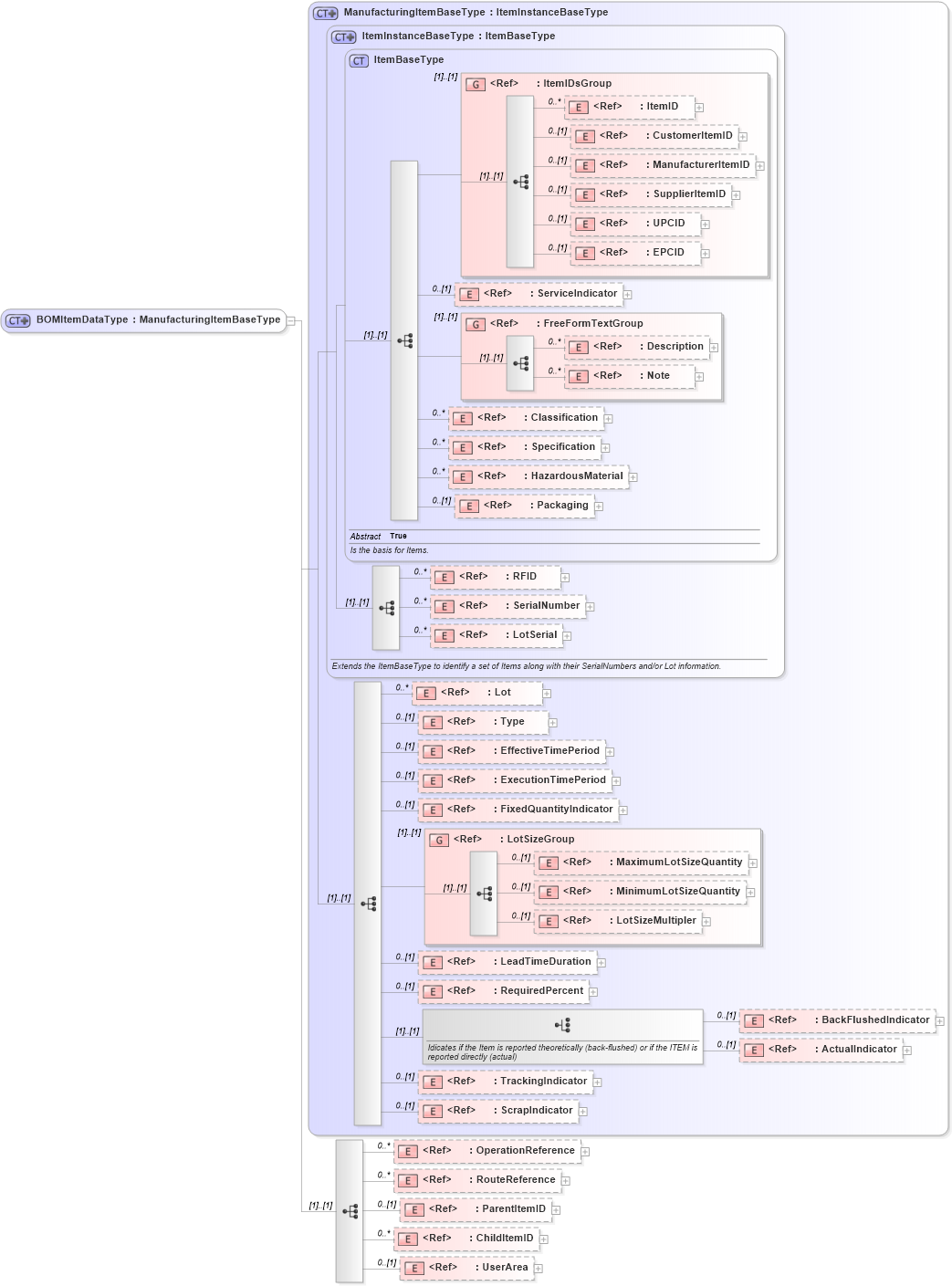

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into ChildItemID in schema components_xsd Drilldown into ParentItemID in schema components_xsd Drilldown into RouteReference in schema components_xsd Drilldown into OperationReference in schema components_xsd Drilldown into ScrapIndicator in schema fields_xsd Drilldown into TrackingIndicator in schema fields_xsd Drilldown into ActualIndicator in schema fields_xsd Drilldown into BackFlushedIndicator in schema fields_xsd Drilldown into RequiredPercent in schema fields_xsd Drilldown into LeadTimeDuration in schema fields_xsd Drilldown into LotSizeMultipler in schema fields_xsd Drilldown into MinimumLotSizeQuantity in schema fields_xsd Drilldown into MaximumLotSizeQuantity in schema fields_xsd Drilldown into LotSizeGroup in schema manufacturingcomponents_xsd Drilldown into FixedQuantityIndicator in schema fields_xsd Drilldown into ExecutionTimePeriod in schema components_xsd Drilldown into EffectiveTimePeriod in schema components_xsd Drilldown into Type in schema fields_xsd Drilldown into Lot in schema components_xsd Drilldown into LotSerial in schema components_xsd Drilldown into SerialNumber in schema fields_xsd Drilldown into RFID in schema fields_xsd Drilldown into Packaging in schema components_xsd Drilldown into HazardousMaterial in schema components_xsd Drilldown into Specification in schema components_xsd Drilldown into Classification in schema components_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into ServiceIndicator in schema fields_xsd Drilldown into EPCID in schema fields_xsd Drilldown into UPCID in schema fields_xsd Drilldown into SupplierItemID in schema components_xsd Drilldown into ManufacturerItemID in schema components_xsd Drilldown into CustomerItemID in schema components_xsd Drilldown into ItemID in schema components_xsd Drilldown into ItemIDsGroup in schema components_xsd Drilldown into ItemBaseType in schema components_xsd Drilldown into ItemInstanceBaseType in schema components_xsd Drilldown into ManufacturingItemBaseType in schema manufacturingcomponents_xsdXSD Diagram of BOMItemDataType in schema bom_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="BOMItemDataType">
    <xsd:complexContent>
        <xsd:extension base="ManufacturingItemBaseType">
            <xsd:sequence>
                <xsd:element ref="OperationReference" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="RouteReference" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="ParentItemID" minOccurs="0" />
                <xsd:element ref="ChildItemID" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="UserArea" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ItemID nsA:ItemID 0 unbounded
CustomerItemID nsA:CustomerItemID 0 (1)
ManufacturerItemID nsA:ManufacturerItemID 0 (1)
SupplierItemID nsA:SupplierItemID 0 (1)
UPCID nsA:UPCID 0 (1)
EPCID nsA:EPCID 0 (1)
ServiceIndicator nsA:ServiceIndicator 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
Classification nsA:Classification 0 unbounded
Specification nsA:Specification 0 unbounded
HazardousMaterial nsA:HazardousMaterial 0 unbounded
Packaging nsA:Packaging 0 (1)
RFID nsA:RFID 0 unbounded
SerialNumber nsA:SerialNumber 0 unbounded
LotSerial nsA:LotSerial 0 unbounded
Lot nsA:Lot 0 unbounded
Type nsA:Type 0 (1)
EffectiveTimePeriod nsA:EffectiveTimePeriod 0 (1)
ExecutionTimePeriod nsA:ExecutionTimePeriod 0 (1)
FixedQuantityIndicator nsA:FixedQuantityIndicator 0 (1)
MaximumLotSizeQuantity nsA:MaximumLotSizeQuantity 0 (1)
MinimumLotSizeQuantity nsA:MinimumLotSizeQuantity 0 (1)
LotSizeMultipler nsA:LotSizeMultipler 0 (1)
LeadTimeDuration nsA:LeadTimeDuration 0 (1)
RequiredPercent nsA:RequiredPercent 0 (1)
BackFlushedIndicator nsA:BackFlushedIndicator 0 (1)
ActualIndicator nsA:ActualIndicator 0 (1)
TrackingIndicator nsA:TrackingIndicator 0 (1)
ScrapIndicator nsA:ScrapIndicator 0 (1)
OperationReference nsA:OperationReference 0 unbounded
RouteReference nsA:RouteReference 0 unbounded
ParentItemID nsA:ParentItemID 0 (1)
ChildItemID nsA:ChildItemID 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:ItemIDsGroup (1) (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
<xs:group> nsA:LotSizeGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:BOMItemData
