Documentation for Open Applications Group (OAGIS)
Definition Type: ComplexType
Name: BOMOptionType
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: BOM.xsd
Abstract

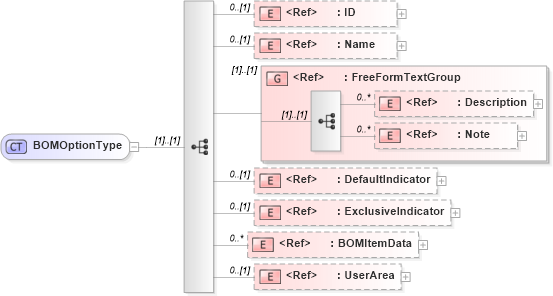

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into BOMItemData in schema bom_xsd Drilldown into ExclusiveIndicator in schema fields_xsd Drilldown into DefaultIndicator in schema fields_xsd Drilldown into Note in schema fields_xsd Drilldown into Description in schema fields_xsd Drilldown into FreeFormTextGroup in schema meta_xsd Drilldown into Name in schema fields_xsd Drilldown into ID in schema fields_xsdXSD Diagram of BOMOptionType in schema bom_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:complexType name="BOMOptionType">
    <xsd:sequence>
        <xsd:element ref="ID" minOccurs="0" />
        <xsd:element ref="Name" minOccurs="0" />
        <xsd:group ref="FreeFormTextGroup" />
        <xsd:element ref="DefaultIndicator" minOccurs="0" />
        <xsd:element ref="ExclusiveIndicator" minOccurs="0" />
        <xsd:element ref="BOMItemData" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsA:ID 0 (1)
Name nsA:Name 0 (1)
Description nsA:Description 0 unbounded
Note nsA:Note 0 unbounded
DefaultIndicator nsA:DefaultIndicator 0 (1)
ExclusiveIndicator nsA:ExclusiveIndicator 0 (1)
BOMItemData nsA:BOMItemData 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:FreeFormTextGroup (1) (1)
Collapse Derivation Tree:
Collapse References:
nsA:BOMOption
