Documentation for Open Applications Group (OAGIS)
Definition Type: Element
Name: BuyerParty
Namespace: http://www.openapplications.org/oagis/9
Type: nsA:CustomerPartyType
Containing Schema: Components.xsd
Abstract
Documentation:
The entity that is responsible for Buying the document or element in which it is associacted. Additionally, the contact may be a person or a group or department.

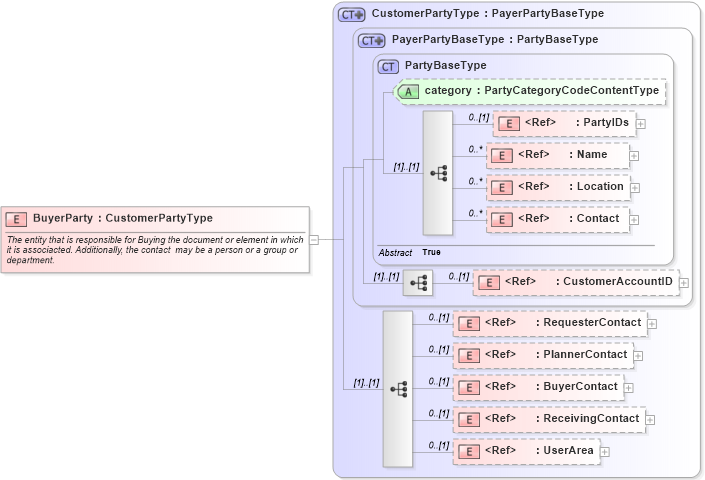

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into ReceivingContact in schema components_xsd Drilldown into BuyerContact in schema components_xsd Drilldown into PlannerContact in schema components_xsd Drilldown into RequesterContact in schema components_xsd Drilldown into CustomerAccountID in schema fields_xsd Drilldown into Contact in schema components_xsd Drilldown into Location in schema components_xsd Drilldown into Name in schema fields_xsd Drilldown into PartyIDs in schema components_xsd Drilldown into category in schema components_xsd Drilldown into PartyBaseType in schema components_xsd Drilldown into PayerPartyBaseType in schema components_xsd Drilldown into CustomerPartyType in schema components_xsdXSD Diagram of BuyerParty in schema components_xsd (Open Applications Group (OAGIS))
Collapse XSD Schema Code:
<xsd:element name="BuyerParty" type="CustomerPartyType">
    <xsd:annotation>
        <xsd:documentation>The entity that is responsible for Buying the document or element in which it is associacted. Additionally, the contact  may be a person or a group or department.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PartyIDs nsA:PartyIDs 0 (1)
Name nsA:Name 0 unbounded
Location nsA:Location 0 unbounded
Contact nsA:Contact 0 unbounded
CustomerAccountID nsA:CustomerAccountID 0 (1)
RequesterContact nsA:RequesterContact 0 (1)
PlannerContact nsA:PlannerContact 0 (1)
BuyerContact nsA:BuyerContact 0 (1)
ReceivingContact nsA:ReceivingContact 0 (1)
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
category nsA:category (Optional)
Collapse Derivation Tree:
